Nacos+Spring Cloud Gateway動態路由配置實現步驟
Nacos最近項目一直在使用，其簡單靈活，支持更細粒度的命令空間，分組等為麻煩復雜的環境切換提供了方便；同時也很好支持動態路由的配置，只需要簡單的幾步即可。在國產的注冊中心、配置中心中比較突出，容易上手，本文通過gateway、nacos-consumer、nacos-provider三個簡單模塊來展示：Nacos下動態路由配置。
博文中源碼已上傳至github(https://github.com/Jian0110/learning-cloudalibaba)，歡迎小伙伴們star

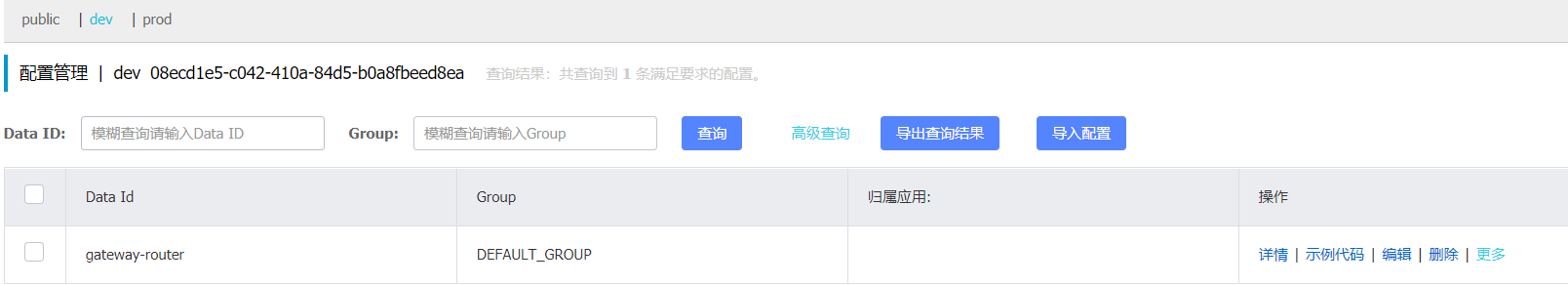

一、Nacos環境準備1、啟動Nacos配置中心并創建路由配置具體的Nacos怎么配置就不介紹了，可以參考阿里巴巴的官方介紹，這里通過windows直接本地啟動開啟單機模式，登錄Nacos Console，創建dev的namespace，在dev下的默認分組下創建gateway-router的dataId

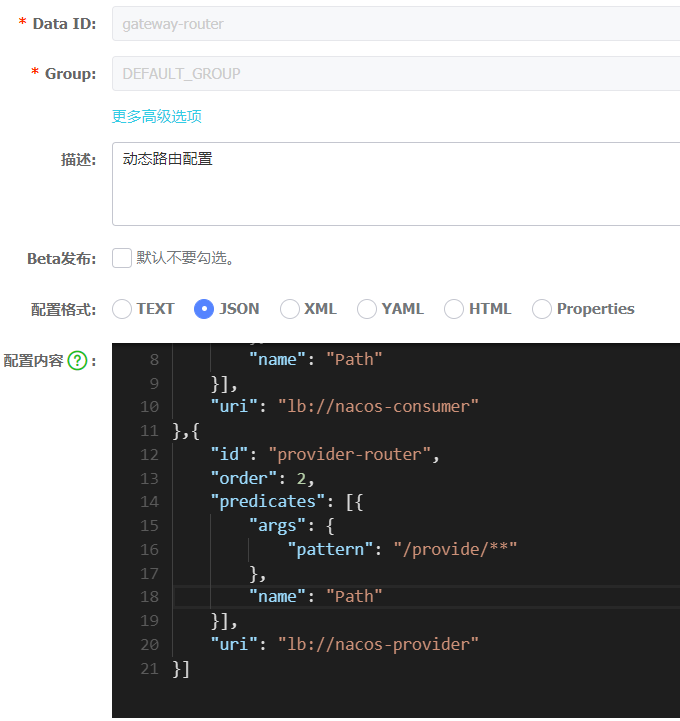

gateway-router的主要初始化配置如下：關于gateway的組成（id，order、predicates斷言，uri）這里就不詳細說明的了，可以自行百度下
[{ 'id': 'consumer-router', 'order': 0, 'predicates': [{'args': { 'pattern': '/consume/**'},'name': 'Path' }], 'uri': 'lb://nacos-consumer'},{ 'id': 'provider-router', 'order': 2, 'predicates': [{'args': { 'pattern': '/provide/**'},'name': 'Path' }], 'uri': 'lb://nacos-provider'}]2、連接Nacos配置中心
通常在項目中配置“配置中心”往往都是在bootstrap.propertis(yaml)中配置，這樣才能保證項目中路由配置從Nacos Config中讀取。
# nacos配置中心配置建議在bootstrap.properties中配置spring.cloud.nacos.config.server-addr=127.0.0.1:8848#spring.cloud.nacos.config.file-extension=properties# 配置中心的命名空間：dev 的命名空間（環境）spring.cloud.nacos.config.namespace=08ecd1e5-c042-410a-84d5-b0a8fbeed8ea
Application啟動類中增加注解@EnableDiscoveryClient，才能保證連接到Nacos Config
@SpringBootApplication@EnableDiscoveryClientpublic class GatewayApplication{ public static void main( String[] args ) {SpringApplication.run(GatewayApplication.class, args); }}二、項目構建1、項目結構
創建簡單的springboot多模塊結構，推薦使用idea創建
1）Nacos父模塊：
<groupId>com.springcloud</groupId><artifactId>nacos</artifactId><version>0.0.1-SNAPSHOT</version><name>nacos</name><description>Nacos Demo</description>
首先pom文件引入Spring Cloud Alibaba Nacos組件：注冊中心nacos-discovery與配置中心nacos-config
<!--nacos 客戶端 注冊中心--> <dependency><groupId>com.alibaba.cloud</groupId><artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId><version>${alibaba-nacos.version}</version> </dependency> <!--nacos 客戶端 配置中心--> <dependency><groupId>com.alibaba.cloud</groupId><artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId><version>${alibaba-nacos.version}</version> </dependency>
其次再引入Spring Cloud相關組件依賴
<dependencyManagement><dependencies> <dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-dependencies</artifactId><version>${spring-boot.version}</version><type>pom</type><scope>import</scope> </dependency> <dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-dependencies</artifactId><version>${spring-cloud.version}</version><type>pom</type><scope>import</scope> </dependency></dependencies></dependencyManagement>
其它組件依賴引入（修正：如果引入了nacos-api相關的JSON依賴，那么fastjson就不需要再引入了，否則可能沖突）：
<dependency> <groupId>com.alibaba</groupId> <artifactId>fastjson</artifactId> <version>${fastjson.version}</version></dependency><dependency> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> <version>${lombok.version}</version> <scope>provided</scope></dependency><dependency> <groupId>org.slf4j</groupId> <artifactId>slf4j-api</artifactId> <version>${slf4j.version}</version></dependency><dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-actuator</artifactId></dependency>
注意，這里有個坑，spring cloud gateway使用的web框架為webflux，和springMVC不兼容。所以不要引入（修正：只有gateway服務不用引入springMVC，其他需要引入）
<dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId></dependency>
2）三個子模塊：gateway、nacos-consumer、nacos-provider
<modules><module>nacos-provider</module><module>nacos-consumer</module><module>gateway</module></modules>
結構截圖如下所示：
3）三個服務的端口分別為：
nacos-consume:6001
nacos-provider:6002
gateway：6003
4）服務架構如下：
（1）在gateway模塊中主要實現以下功能：
第一，從Nacos配置中心中加載動態路由的相關配置，就需要讀取Nacos的命名空間namespace，通過dataId獲取配置
/** * 路由類配置 */@Configurationpublic class GatewayConfig { public static final long DEFAULT_TIMEOUT = 30000; public static String NACOS_SERVER_ADDR; public static String NACOS_NAMESPACE; public static String NACOS_ROUTE_DATA_ID; public static String NACOS_ROUTE_GROUP; @Value('${spring.cloud.nacos.discovery.server-addr}') public void setNacosServerAddr(String nacosServerAddr){NACOS_SERVER_ADDR = nacosServerAddr; } @Value('${spring.cloud.nacos.discovery.namespace}') public void setNacosNamespace(String nacosNamespace){NACOS_NAMESPACE = nacosNamespace; } @Value('${nacos.gateway.route.config.data-id}') public void setNacosRouteDataId(String nacosRouteDataId){NACOS_ROUTE_DATA_ID = nacosRouteDataId; } @Value('${nacos.gateway.route.config.group}') public void setNacosRouteGroup(String nacosRouteGroup){NACOS_ROUTE_GROUP = nacosRouteGroup; }}
properties配置關于Nacos下讀取gateway-router的配置：
spring.cloud.nacos.discovery.server-addr=127.0.0.1:8848spring.cloud.nacos.discovery.namespace=08ecd1e5-c042-410a-84d5-b0a8fbeed8eanacos.gateway.route.config.data-id=gateway-routernacos.gateway.route.config.group=DEFAULT_GROUP
第二，初始化路由，監聽動態路由配置的數據源變化(2020.12.28解決刪除路由不生效問題)；
/** * * 通過nacos下發動態路由配置,監聽Nacos中gateway-route配置 * */@Component@Slf4j@DependsOn({'gatewayConfig'}) // 依賴于gatewayConfig beanpublic class DynamicRouteServiceImplByNacos { @Autowired private DynamicRouteServiceImpl dynamicRouteService; private ConfigService configService; @PostConstruct public void init() {log.info('gateway route init...');try{ configService = initConfigService(); if(configService == null){log.warn('initConfigService fail');return; } String configInfo = configService.getConfig(GatewayConfig.NACOS_ROUTE_DATA_ID, GatewayConfig.NACOS_ROUTE_GROUP, GatewayConfig.DEFAULT_TIMEOUT); log.info('獲取網關當前配置:rn{}',configInfo); List<RouteDefinition> definitionList = JSON.parseArray(configInfo, RouteDefinition.class); for(RouteDefinition definition : definitionList){log.info('update route : {}',definition.toString());dynamicRouteService.add(definition); }} catch (Exception e) { log.error('初始化網關路由時發生錯誤',e);}dynamicRouteByNacosListener(GatewayConfig.NACOS_ROUTE_DATA_ID,GatewayConfig.NACOS_ROUTE_GROUP); } /** * 監聽Nacos下發的動態路由配置 * @param dataId * @param group */ public void dynamicRouteByNacosListener (String dataId, String group){try { configService.addListener(dataId, group, new Listener() {@Overridepublic void receiveConfigInfo(String configInfo) { log.info('進行網關更新:nr{}',configInfo); List<RouteDefinition> definitionList = JSON.parseArray(configInfo, RouteDefinition.class); log.info('update route : {}',definitionList.toString()); dynamicRouteService.updateList(definitionList);}@Overridepublic Executor getExecutor() { log.info('getExecutornr'); return null;} });} catch (NacosException e) { log.error('從nacos接收動態路由配置出錯!!!',e);} } /** * 初始化網關路由 nacos config * @return */ private ConfigService initConfigService(){try{ Properties properties = new Properties(); properties.setProperty('serverAddr',GatewayConfig.NACOS_SERVER_ADDR); properties.setProperty('namespace',GatewayConfig.NACOS_NAMESPACE); return configService= NacosFactory.createConfigService(properties);} catch (Exception e) { log.error('初始化網關路由時發生錯誤',e); return null;} }}
第三，刷新最新的動態路由變化，實現動態增刪改路由（2020.12.28解決刪除路由不生效問題）
/** * 動態更新路由網關service * 1）實現一個Spring提供的事件推送接口ApplicationEventPublisherAware * 2）提供動態路由的基礎方法，可通過獲取bean操作該類的方法。該類提供新增路由、更新路由、刪除路由，然后實現發布的功能。 */@Slf4j@Servicepublic class DynamicRouteServiceImpl implements ApplicationEventPublisherAware { @Autowired private RouteDefinitionWriter routeDefinitionWriter; @Autowired private RouteDefinitionLocator routeDefinitionLocator; /** * 發布事件 */ @Autowired private ApplicationEventPublisher publisher; @Override public void setApplicationEventPublisher(ApplicationEventPublisher applicationEventPublisher) {this.publisher = applicationEventPublisher; } /** * 刪除路由 * @param id * @return */ public String delete(String id) {try { log.info('gateway delete route id {}',id); this.routeDefinitionWriter.delete(Mono.just(id)).subscribe(); this.publisher.publishEvent(new RefreshRoutesEvent(this)); return 'delete success';} catch (Exception e) { return 'delete fail';} } /** * 更新路由 * @param definitions * @return */ public String updateList(List<RouteDefinition> definitions) {log.info('gateway update route {}',definitions);// 刪除緩存routerDefinitionList<RouteDefinition> routeDefinitionsExits = routeDefinitionLocator.getRouteDefinitions().buffer().blockFirst();if (!CollectionUtils.isEmpty(routeDefinitionsExits)) { routeDefinitionsExits.forEach(routeDefinition -> {log.info('delete routeDefinition:{}', routeDefinition);delete(routeDefinition.getId()); });}definitions.forEach(definition -> { updateById(definition);});return 'success'; } /** * 更新路由 * @param definition * @return */ public String updateById(RouteDefinition definition) {try { log.info('gateway update route {}',definition); this.routeDefinitionWriter.delete(Mono.just(definition.getId()));} catch (Exception e) { return 'update fail,not find route routeId: '+definition.getId();}try { routeDefinitionWriter.save(Mono.just(definition)).subscribe(); this.publisher.publishEvent(new RefreshRoutesEvent(this)); return 'success';} catch (Exception e) { return 'update route fail';} } /** * 增加路由 * @param definition * @return */ public String add(RouteDefinition definition) {log.info('gateway add route {}',definition);routeDefinitionWriter.save(Mono.just(definition)).subscribe();this.publisher.publishEvent(new RefreshRoutesEvent(this));return 'success'; }}三、測試動態網關配置1、啟動服務，觀察注冊中心

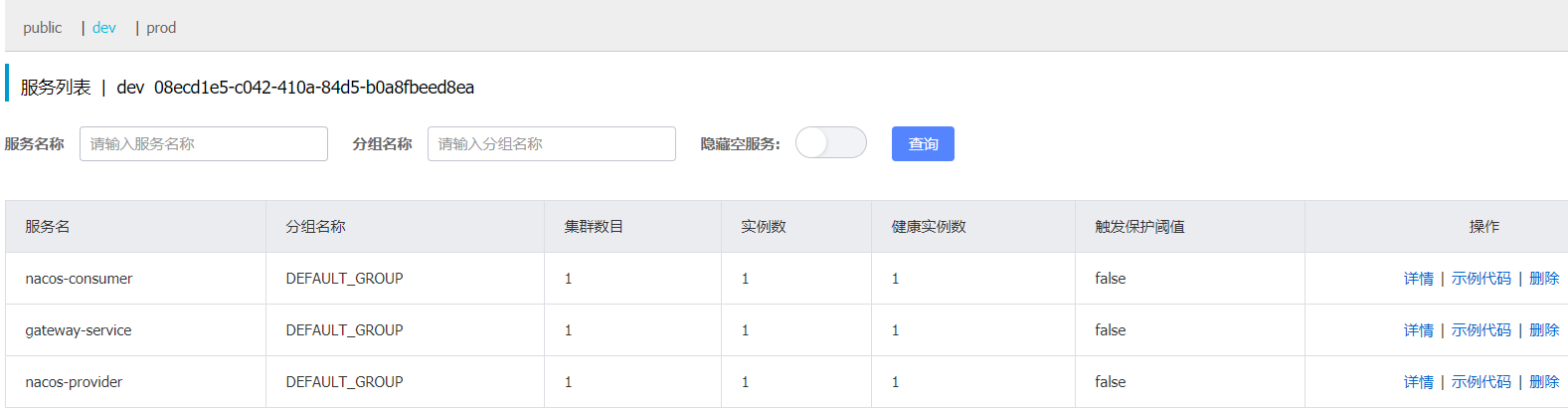

分別啟動gateway、nacos-consumer、nacos-provider三個服務，觀察是否已經在Nacos上正確注冊
注意：需要指定注冊中心的namespace為dev的空間，即spring.cloud.nacos.discovery.namespace=08ecd1e5-c042-410a-84d5-b0a8fbeed8ea
2、訪問網關，觀察服務日志（1）查看gateway服務的初始化啟動日志：會發現可以正常從Nacos獲取配置gateway-router網關配置文件內容，并進行正確路由加載...
2020-05-10 14:33:44.557 INFO 1272 --- [ main] c.g.r.DynamicRouteServiceImplByNacos : gateway route init...2020-05-10 14:33:44.578 INFO 1272 --- [ main] c.g.r.DynamicRouteServiceImplByNacos : 獲取網關當前配置:[{ 'id': 'consumer-router', 'order': 0, 'predicates': [{'args': { 'pattern': '/consume/**'},'name': 'Path' }], 'uri': 'lb://nacos-consumer'},{ 'id': 'provider-router', 'order': 2, 'predicates': [{'args': { 'pattern': '/provide/**'},'name': 'Path' }], 'uri': 'lb://nacos-provider'}]2020-05-10 14:33:44.691 INFO 1272 --- [ main] c.g.r.DynamicRouteServiceImplByNacos : update route : RouteDefinition{id=’consumer-router’, predicates=[PredicateDefinition{name=’Path’, args={pattern=/consume/**}}], filters=[], uri=lb://nacos-consumer, order=0, metadata={}}2020-05-10 14:33:44.691 INFO 1272 --- [ main] c.g.service.DynamicRouteServiceImpl : gateway add route RouteDefinition{id=’consumer-router’, predicates=[PredicateDefinition{name=’Path’, args={pattern=/consume/**}}], filters=[], uri=lb://nacos-consumer, order=0, metadata={}}2020-05-10 14:33:45.192 INFO 1272 --- [ main] o.s.c.g.r.RouteDefinitionRouteLocator : Loaded RoutePredicateFactory [After]2020-05-10 14:33:45.192 INFO 1272 --- [ main] o.s.c.g.r.RouteDefinitionRouteLocator : Loaded RoutePredicateFactory [Before]2020-05-10 14:33:45.192 INFO 1272 --- [ main] o.s.c.g.r.RouteDefinitionRouteLocator : Loaded RoutePredicateFactory [Between]2020-05-10 14:33:45.193 INFO 1272 --- [ main] o.s.c.g.r.RouteDefinitionRouteLocator : Loaded RoutePredicateFactory [Cookie]2020-05-10 14:33:45.193 INFO 1272 --- [ main] o.s.c.g.r.RouteDefinitionRouteLocator : Loaded RoutePredicateFactory [Header]2020-05-10 14:33:45.193 INFO 1272 --- [ main] o.s.c.g.r.RouteDefinitionRouteLocator : Loaded RoutePredicateFactory [Host]2020-05-10 14:33:45.194 INFO 1272 --- [ main] o.s.c.g.r.RouteDefinitionRouteLocator : Loaded RoutePredicateFactory [Method]2020-05-10 14:33:45.194 INFO 1272 --- [ main] o.s.c.g.r.RouteDefinitionRouteLocator : Loaded RoutePredicateFactory [Path]2020-05-10 14:33:45.194 INFO 1272 --- [ main] o.s.c.g.r.RouteDefinitionRouteLocator : Loaded RoutePredicateFactory [Query]2020-05-10 14:33:45.194 INFO 1272 --- [ main] o.s.c.g.r.RouteDefinitionRouteLocator : Loaded RoutePredicateFactory [ReadBodyPredicateFactory]2020-05-10 14:33:45.194 INFO 1272 --- [ main] o.s.c.g.r.RouteDefinitionRouteLocator : Loaded RoutePredicateFactory [RemoteAddr]2020-05-10 14:33:45.194 INFO 1272 --- [ main] o.s.c.g.r.RouteDefinitionRouteLocator : Loaded RoutePredicateFactory [Weight]2020-05-10 14:33:45.194 INFO 1272 --- [ main] o.s.c.g.r.RouteDefinitionRouteLocator : Loaded RoutePredicateFactory [CloudFoundryRouteService]2020-05-10 14:33:45.335 INFO 1272 --- [ main] c.g.r.DynamicRouteServiceImplByNacos : update route : RouteDefinition{id=’provider-router’, predicates=[PredicateDefinition{name=’Path’, args={pattern=/provide/**}}], filters=[], uri=lb://nacos-provider, order=2, metadata={}}2020-05-10 14:33:45.335 INFO 1272 --- [ main] c.g.service.DynamicRouteServiceImpl : gateway add route RouteDefinition{id=’provider-router’, predicates=[PredicateDefinition{name=’Path’, args={pattern=/provide/**}}], filters=[], uri=lb://nacos-provider, order=2, metadata={}}2020-05-10 14:33:45.336 INFO 1272 --- [ main] c.g.r.DynamicRouteServiceImplByNacos : update route : RouteDefinition{id=’github-router’, predicates=[PredicateDefinition{name=’Path’, args={pattern=/github}}], filters=[], uri=https://github.com, order=3, metadata={}}2020-05-10 14:33:45.336 INFO 1272 --- [ main] c.g.service.DynamicRouteServiceImpl : gateway add route RouteDefinition{id=’github-router’, predicates=[PredicateDefinition{name=’Path’, args={pattern=/github}}], filters=[], uri=https://github.com, order=3, metadata={}}
但這只能說明是初始化靜態路由，下面我們改變gateway-router網關配置內容，追加github-router路由
[{ 'id': 'consumer-router', 'order': 0, 'predicates': [{'args': { 'pattern': '/consume/**'},'name': 'Path' }], 'uri': 'lb://nacos-consumer'},{ 'id': 'provider-router', 'order': 2, 'predicates': [{'args': { 'pattern': '/provide/**'},'name': 'Path' }], 'uri': 'lb://nacos-provider'},{ 'id': 'github-router', 'order': 2, 'predicates': [{'args': { 'pattern': '/github/**'},'name': 'Path' }], 'uri': 'https://github.com'}]

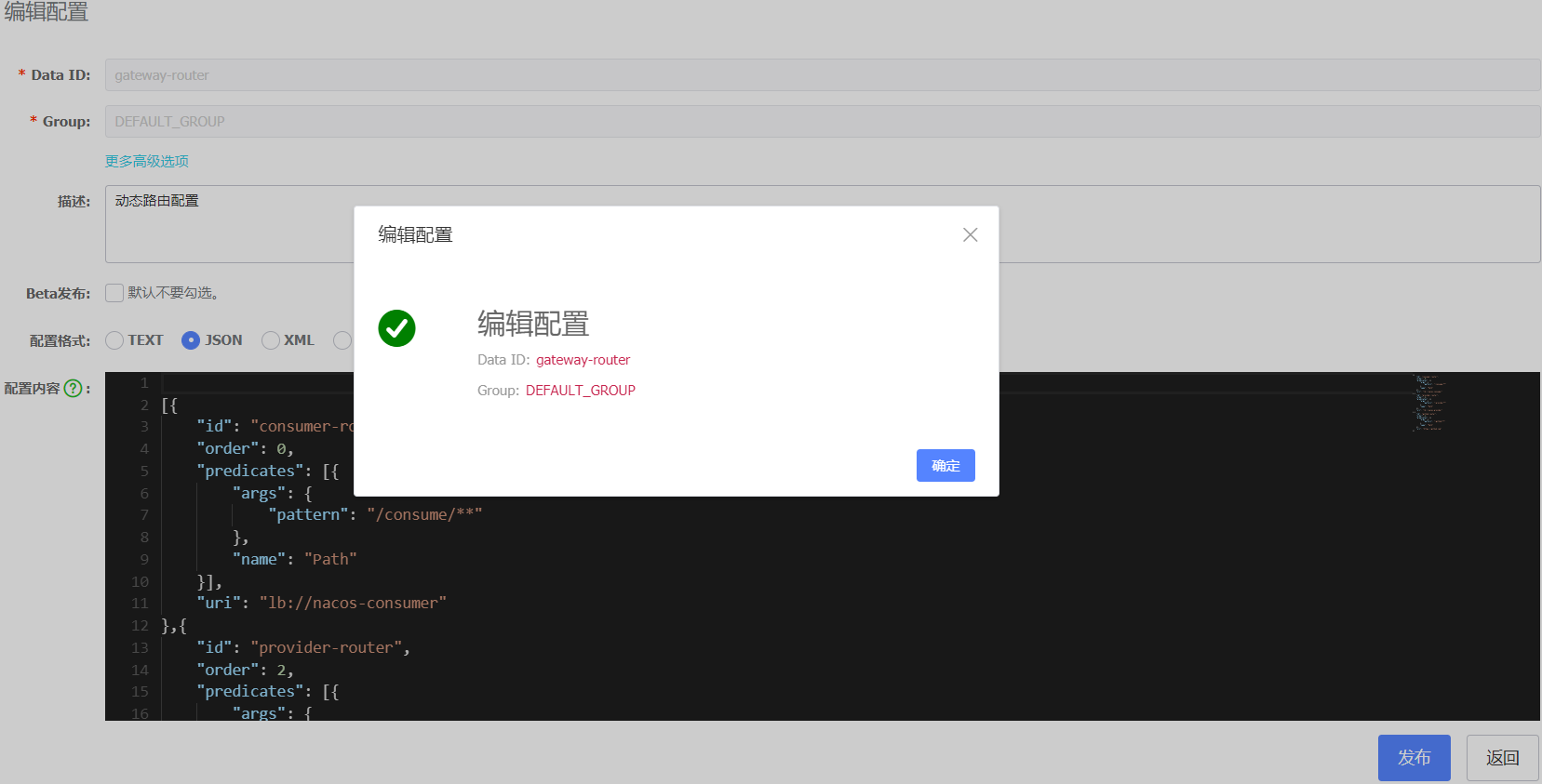

之后點擊發布更新路由配置
觀察gateway服務日志，有沒有監聽，并且進行正確的路由更新：如下日志所示，最新路由配置立馬被打印，并且進行正確路由更新
2020-05-10 14:42:27.576 INFO 1272 --- [d5-b0a8fbeed8ea] c.g.r.DynamicRouteServiceImplByNacos : 進行網關更新:[{ 'id': 'consumer-router', 'order': 0, 'predicates': [{'args': { 'pattern': '/consume/**'},'name': 'Path' }], 'uri': 'lb://nacos-consumer'},{ 'id': 'provider-router', 'order': 2, 'predicates': [{'args': { 'pattern': '/provide/**'},'name': 'Path' }], 'uri': 'lb://nacos-provider'},{ 'id': 'github-router', 'order': 2, 'predicates': [{'args': { 'pattern': '/github/**'},'name': 'Path' }], 'uri': 'https://github.com'}]2020-05-10 14:42:27.576 INFO 1272 --- [d5-b0a8fbeed8ea] c.g.r.DynamicRouteServiceImplByNacos : update route : RouteDefinition{id=’consumer-router’, predicates=[PredicateDefinition{name=’Path’, args={pattern=/consume/**}}], filters=[], uri=lb://nacos-consumer, order=0, metadata={}}2020-05-10 14:42:27.576 INFO 1272 --- [d5-b0a8fbeed8ea] c.g.service.DynamicRouteServiceImpl : gateway update route RouteDefinition{id=’consumer-router’, predicates=[PredicateDefinition{name=’Path’, args={pattern=/consume/**}}], filters=[], uri=lb://nacos-consumer, order=0, metadata={}}2020-05-10 14:42:27.578 INFO 1272 --- [d5-b0a8fbeed8ea] c.g.r.DynamicRouteServiceImplByNacos : update route : RouteDefinition{id=’provider-router’, predicates=[PredicateDefinition{name=’Path’, args={pattern=/provide/**}}], filters=[], uri=lb://nacos-provider, order=2, metadata={}}2020-05-10 14:42:27.578 INFO 1272 --- [d5-b0a8fbeed8ea] c.g.service.DynamicRouteServiceImpl : gateway update route RouteDefinition{id=’provider-router’, predicates=[PredicateDefinition{name=’Path’, args={pattern=/provide/**}}], filters=[], uri=lb://nacos-provider, order=2, metadata={}}2020-05-10 14:42:27.580 INFO 1272 --- [d5-b0a8fbeed8ea] c.g.r.DynamicRouteServiceImplByNacos : update route : RouteDefinition{id=’github-router’, predicates=[PredicateDefinition{name=’Path’, args={pattern=/github/**}}], filters=[], uri=https://github.com, order=2, metadata={}}2020-05-10 14:42:27.580 INFO 1272 --- [d5-b0a8fbeed8ea] c.g.service.DynamicRouteServiceImpl : gateway update route RouteDefinition{id=’github-router’, predicates=[PredicateDefinition{name=’Path’, args={pattern=/github/**}}], filters=[], uri=https://github.com, order=2, metadata={}}

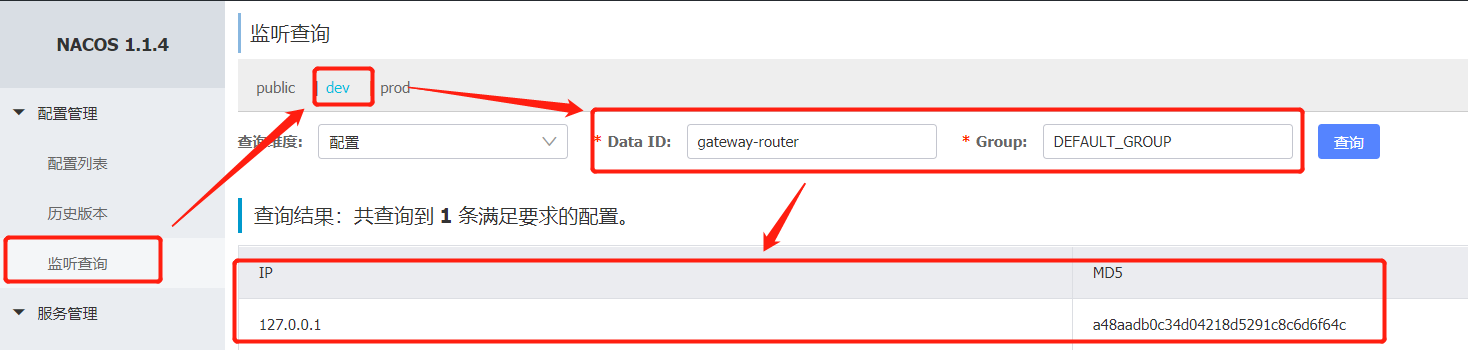

其實，還有辦法可以知道我們的gateway服務有沒有監聽Nacos的gateway-router配置，那就是在Nacos Console--->監聽查詢----->選擇配置---->輸入配置文件的namespace與Group：可以發現我本地IP地址127.0.0.1對配置文件gateway-router進行了監聽

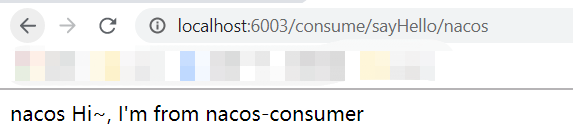

（2）訪問gateway網關服務：http://localhost:6003/consume/sayHello/nacos
查看consumer服務日志：
2020-05-10 14:55:07.257 INFO 6552 --- [nio-6001-exec-2] c.n.c.controller.ConsumeController : I’m calling nacos-consumer service by dynamic gateway...
發現跳轉至consumer服務，并且訪問了consumer服務的CosnumerController

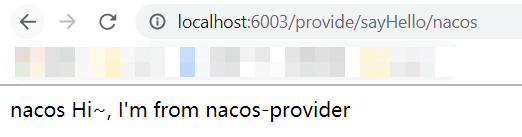

（3）訪問gateway網關服務：http://localhost:6003/provider/sayHello/nacos
查看provider服務日志：
2020-05-10 14:56:56.144 INFO 10024 --- [nio-6002-exec-1] c.n.p.controller.ProviderController : I’m calling nacos-provider service by dynamic gateway...
發現跳轉至consumer服務，并且訪問了provider服務的ProviderController

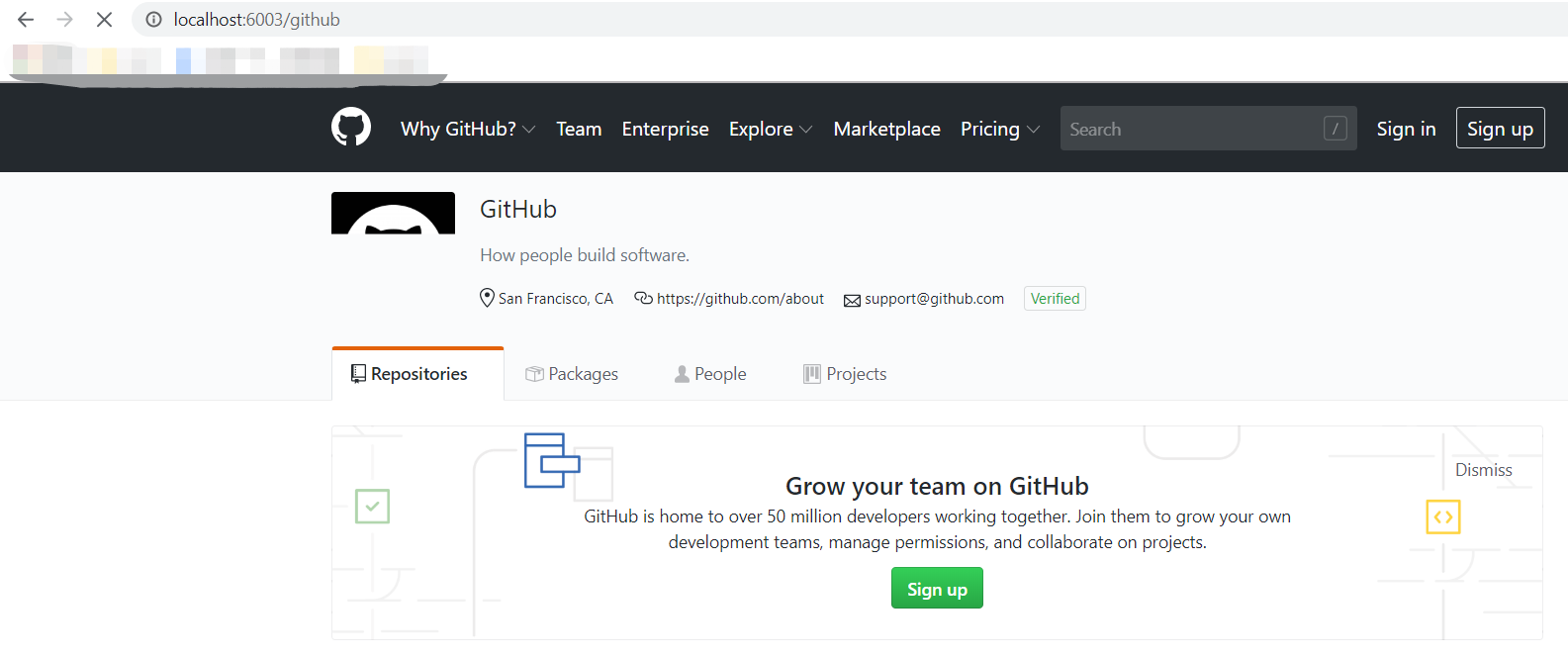

（4）訪問訪問gateway網關服務：http://localhost:6003/github，正確跳轉至github頁面
1）Spring Cloud Gateway作用不光只是簡單的跳轉重定向，還可以實現用戶的驗證登錄，解決跨域，日志攔截，權限控制，限流，熔斷，負載均衡，黑名單和白名單機制等。是微服務架構不二的選擇；
2）Nacos的配置中心支持動態獲取配置文件，可以將一些全局的經常變更的配置文件放在Nacos下，需要到微服務自行獲取。
2020.12.28解決刪除路由不生效問題，主要是利用RouteDefinitionLocator先讀取變化之前的RouteDefinition，之后刪除重新再更新，或者可以實現routeDefinitionWriter、RouteDefinitionLocator重寫如下方法：
Mono<Void> save(Mono<RouteDefinition> route);Mono<Void> delete(Mono<String> routeId);Flux<RouteDefinition> getRouteDefinitions();
