眾所周知，android的底部菜單欄太重要，平時項目一般都是需要用到的，但是網上關于這方面的demo做得太丑了，實在慘不忍睹，所以這里便用RadioGroup+Fragment的方式寫了一個，順便美化了一下，需要的可以看下。

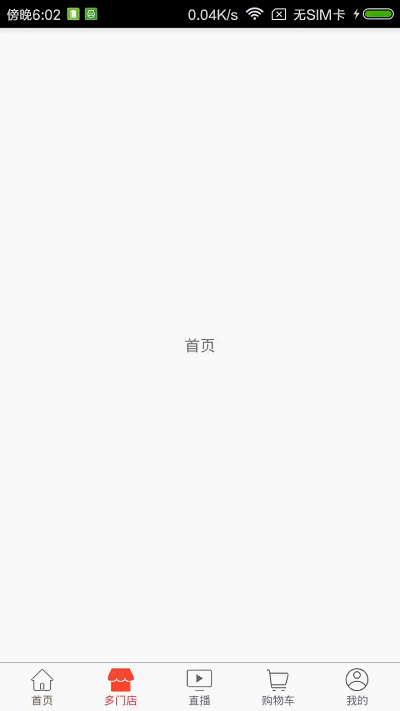

效果圖：

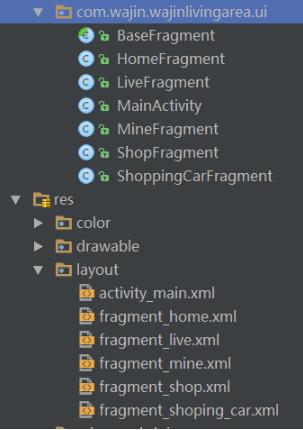

項目結構

MainActivity.java

public class MainActivity extends AppCompatActivity { private FrameLayout frameLayout; private RadioGroup radioGroup; private Fragment[] mFragments; private int mIndex; @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); initFragment(); setRadioGroupListener(); } private void initFragment() { radioGroup = (RadioGroup) findViewById(R.id.radioGroup); frameLayout = (FrameLayout) findViewById(R.id.fl_content); HomeFragment homeFragment = new HomeFragment(); ShopFragment shopFragment = new ShopFragment(); LiveFragment liveFragment = new LiveFragment(); ShoppingCarFragment shoppingCarFragment = new ShoppingCarFragment(); MineFragment mineFragment = new MineFragment(); //添加到數組 mFragments = new Fragment[]{homeFragment, shopFragment, liveFragment, shoppingCarFragment, mineFragment}; //開啟事務 FragmentTransaction ft = getSupportFragmentManager().beginTransaction(); //添加首頁 ft.add(R.id.fl_content, homeFragment).commit(); //默認設置為第0個 setIndexSelected(0); } private void setIndexSelected(int index) { if (mIndex == index) { return; } FragmentManager fragmentManager = getSupportFragmentManager(); FragmentTransaction ft = fragmentManager.beginTransaction(); //隱藏 ft.hide(mFragments[mIndex]); //判斷是否添加 if (!mFragments[index].isAdded()) { ft.add(R.id.fl_content, mFragments[index]).show(mFragments[index]); } else { ft.show(mFragments[index]); } ft.commit(); //再次賦值 mIndex = index; } private void setRadioGroupListener() { radioGroup.setOnCheckedChangeListener(new RadioGroup.OnCheckedChangeListener() { @Override public void onCheckedChanged(RadioGroup radioGroup, int i) { switch (i) { case R.id.rb_home: setIndexSelected(0); break; case R.id.rb_shop: setIndexSelected(1); break; case R.id.rb_live: setIndexSelected(2); break; case R.id.rb_shopping_car: setIndexSelected(3); break; case R.id.rb_mine: setIndexSelected(4); break; default: setIndexSelected(0); break; } } }); } @Override public boolean onKeyDown(int keyCode, KeyEvent event) { if (keyCode == KeyEvent.KEYCODE_BACK) { //僅當activity為task根（即首個啟動activity）時才生效,這個方法不會改變task中的activity狀態， // 按下返回鍵的作用跟按下HOME效果一樣；重新點擊應用還是回到應用退出前的狀態； moveTaskToBack(false); return true; } return super.onKeyDown(keyCode, event); }}

Fragment,這里只列出HomeFragment的，其他都是一樣

public class HomeFragment extends BaseFragment { public HomeFragment() { } @Override public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) { View view=inflater.inflate(R.layout.fragment_home,container,false); return view; } }

activity_main.xml布局文件

<?xml version='1.0' encoding='utf-8'?><RelativeLayout xmlns:android='http://schemas.android.com/apk/res/android' xmlns:tools='http://schemas.android.com/tools' android:layout_width='match_parent' android:layout_height='match_parent'> <FrameLayout android: android:layout_width='match_parent' android:layout_height='match_parent' android:layout_above='@+id/line' /> <View android: android:layout_width='match_parent' android:layout_height='@dimen/line_size' android:layout_above='@+id/radioGroup' android:background='#9e9e9e' /> <RadioGroup android: android:layout_width='match_parent' android:layout_height='wrap_content' android:layout_alignParentBottom='true' android:clickable='true' android:gravity='center' android:orientation='horizontal' android:padding='3dp'> <RadioButton android:android:checked='true' android:drawableTop='@drawable/btn_home' android:text='@string/home' /> <RadioButton android:android:drawableTop='@drawable/btn_shop' android:text='@string/shop' /> <RadioButton android:android:drawableTop='@drawable/btn_live' android:text='@string/live' /> <RadioButton android:android:drawableTop='@drawable/btn_shopping_car' android:text='@string/shopping_car' /> <RadioButton android:android:drawableTop='@drawable/btn_mine' android:text='@string/mine' /> </RadioGroup> </RelativeLayout>

RadioButton的樣式

<style name='RadioButtonStyle'> <item name='android:layout_width'>0dp</item> <item name='android:layout_weight'>1</item> <item name='android:layout_height'>match_parent</item> <item name='android:layout_marginRight'>10dp</item> <item name='android:layout_marginLeft'>10dp</item> <item name='android:button'>@null</item> <item name='android:gravity'>center</item> <item name='android:textColor'>@color/color_radiobutton</item> <item name='android:textSize'>10sp</item></style>

Demo下載地址：底部菜單欄

溫馨提示：以后我自己寫的demo都是用Android Studio寫的了，用Eclipse的同學要的話需要自己改一下，時代在進步，工具也在升級！
