前言

Zabbix是目前最為主流的開源監控方案之一，部署本身并不困難，難的是深入理解。根據在生產環境的實踐從新版Zabbix 4.0 LTS開始全部使用Docker部署，我相信未來越來越多的開源組件都會以容器化的形式呈現在我們面前。

操作系統：

[root@mysql ~]# cat /etc/redhat-releaseCentOS Linux release 7.5.1804 (Core)

Mysql ： 版本5.7.23 192.168.75.251

Zabbix Server：版本3.4.12 192.168.75.250

一、安裝Mysql

1.1下載mysql

關閉防火墻

#systemctl stop firewalld# systemctl disable firewalldvi /etc/selinux/configSELINUX=enforcing 改為 SELINUX= disabled

Centos7 默認數據庫為mariadb ，先卸載

rpm –qa |grep mariadbmariadb-libs-5.5.56-2.el7.x86_64rpm -e --nodeps mariadb-libs-5.5.56-2.el7.x86_64

這個版本需要boost 1.9，也要下載

[root@mysql soft]# lltotal 132444-rw-r--r-- 1 root root 83709983 Aug 10 10:26 boost_1_59_0.tar.gz-rw-r--r-- 1 root root 51907462 Aug 10 10:26 mysql-5.7.23.tar.gz

添加mysql用戶，

groupadd mysqluseradd -g mysql -s /sbin/nologin mysql

1.2安裝依賴包

yum install -y cmake bison bison-devel libaio-devel gcc gcc-c++ git ncurses-devel

1.3編譯

解壓mysql ,把boost的壓縮版放到解壓后的mysql目錄內

tar xzvf mysql-5.7.23.tar.gzmv boost_1_59_0.tar.gz mysql-5.7.23

進入MySQL源文件目錄，新建configure做為編譯目錄，并進入該目

cd mysql-5.7.23mkdir configurecd configure

使用cmake進行生成編譯環境，

cmake .. -DBUILD_CONFIG=mysql_release \-DINSTALL_LAYOUT=STANDALONE \-DCMAKE_BUILD_TYPE=RelWithDebInfo \-DENABLE_DTRACE=OFF \-DWITH_EMBEDDED_SERVER=OFF \-DWITH_INNODB_MEMCACHED=ON \-DWITH_SSL=bundled \-DWITH_ZLIB=system \-DWITH_PAM=ON \-DCMAKE_INSTALL_PREFIX=/var/mysql/ \-DINSTALL_PLUGINDIR="/var/mysql/lib/plugin" \-DDEFAULT_CHARSET=utf8 \-DDEFAULT_COLLATION=utf8_general_ci \-DWITH_EDITLINE=bundled \-DFEATURE_SET=community \-DCOMPILATION_COMMENT="MySQL Server (GPL)" \-DWITH_DEBUG=OFF \-DWITH_BOOST=..

安裝

make && make install

修改配置文件

vim /etc/my.cnf[mysqld]datadir=/var/lib/mysqlsocket=/var/mysql/mysql.sockport=3306log_error=/var/mysql/log/error.logbasedir=/var/mysql/[client]socket=/var/mysql/mysql.sockchown mysql.mysql /etc/my.cnf

創建日志文件

mkdir -p /var/mysql/logtouch /var/mysql/log/error.logtouch /var/mysql/mysql.sockchown -R mysql.mysql /var/mysql/

1.4初始化

#/var/mysql/bin/mysqld --initialize --user=mysql

查看數據文件是否生成

#ll /var/lib/mysqltotal 110628-rw-r----- 1 mysql mysql 56 Aug 10 11:06 auto.cnf-rw-r----- 1 mysql mysql 417 Aug 10 11:06 ib_buffer_pool-rw-r----- 1 mysql mysql 12582912 Aug 10 11:06 ibdata1-rw-r----- 1 mysql mysql 50331648 Aug 10 11:06 ib_logfile0-rw-r----- 1 mysql mysql 50331648 Aug 10 11:06 ib_logfile1drwxr-x--- 2 mysql mysql 4096 Aug 10 11:06 mysqldrwxr-x--- 2 mysql mysql 8192 Aug 10 11:06 performance_schemadrwxr-x--- 2 mysql mysql 8192 Aug 10 11:06 sys

查看日志文件是否生成

# ll /var/mysql/log

臨時密碼生成放在 error.log中

# cat /var/mysql/log/error.log2019-11-18T09:06:22.922254Z 0 [Warning] TIMESTAMP with implicit DEFAULT value is deprecated. Please use --explicit_defaults_for_timestamp server option (see documentation for more details).2019-11-18T09:06:24.600401Z 0 [Warning] InnoDB: New log files created, LSN=457902019-11-18T09:06:24.853258Z 0 [Warning] InnoDB: Creating foreign key constraint system tables.2019-11-18T09:06:24.915246Z 0 [Warning] No existing UUID has been found, so we assume that this is the first time that this server has been started. Generating a new UUID: 5dbf9eac-9c4a-11e8-8768-000c29a48522.2019-11-18T09:06:24.916709Z 0 [Warning] Gtid table is not ready to be used. Table "mysql.gtid_executed" cannot be opened.2019-11-18T09:06:24.917772Z 1 [Note] A temporary password is generated for root@localhost: NS0+>RzwvHWl

1.5啟動

修改初始密碼、修改環境變量

從模板文件中復制啟動文件：

cp /var/mysql/support-files/mysql.server /etc/init.d/mysqld

修改啟動文件：

vim /etc/init.d/mysqld

找到如下二行：

basedir=

datadir=

修改為：

basedir=/var/mysql/datadir=/var/lib/mysql

更改權限

#chown -R mysql.mysql /var/mysql /var/lib/mysql

啟動

/etc/init.d/mysqld startln -s /var/mysql/bin/mysql /usr/bin

配置MySQL環境變量：

vim /root/.bash_profile

找到下面一行：

PATH=$PATH:$HOME/bin

修改為：

PATH=$PATH:$HOME/bin:/var/mysql/bin

利用上面生成的臨時密碼，登錄

# mysql –u root –p NS0+>RzwvHWl

Welcome to the MySQL monitor. Commands end with ; or \g.

Your MySQL connection id is 6

Server version: 5.7.23

Copyright (c) 2000, 2018, Oracle and/or its affiliates. All rights reserved.

Oracle is a registered trademark of Oracle Corporation and/or its

affiliates. Other names may be trademarks of their respective

owners.

Type "help;" or "\h" for help. Type "\c" to clear the current input statement.

mysql>

更改初始密碼

mysql> alter user "root"@"localhost" identified by "123456";

二、安裝Zabbix Server

2.1 安裝php

安裝php7.1版本，zabbix3.0版本要求php5.4及以上。

先查看本地php版本

php -v

檢查當前php的安裝包

yum list installed | grep php

將本地php安裝包卸載干凈

yum remove php*

默認的yum源無法升級PHP，需要添加第三方y(tǒng)um源，我們選擇webtatic庫

rpm -Uvh https://mirror.webtatic.com/yum/el7/epel-release.rpmrpm -Uvh https://mirror.webtatic.com/yum/el7/webtatic-release.rpm

安裝php7.1

yum install -y php71w

安裝相關插件

yum install -y php71w-fpm php71w-opcache php71w-cli php71w-gd php71w-imap php71w-mysqlnd php71w-mbstring php71w-mcrypt php71w-pdo php71w-pecl-apcu php71w-pecl-mongodb php71w-pecl-redis php71w-pgsql php71w-xml php71w-xmlrpc php71w-devel mod_php71w php71w-ldap php71w-bcmath

修改PHP的配置參數

vim /etc/php.inidate.timezone= Asia/Shanghaimax_execution_time = 300post_max_size = 32Mmemory_limit = 128Mmbstring.func_overload = 1max_input_time = 300

Session調整權限，

chmod -R 777 /var/lib/php/session/

2.2 安裝zabbix

安裝依賴包

yum -y install gcc* make curl curl-devel net-snmp net-snmp-devel perl-DBI httpd mariadb* mysql-devel libxml2-devel curl-devel unixODBC-devel net-snmp-devel OpenIPMI-devel openldap openldap-devel libevent-develjava-devellibssh2-devel

創建zabbix用戶和組

groupadd zabbixuseradd -g zabbix zabbix

編譯、安裝

tar zxvf zabbix-3.4.12.tar.gzcd zabbix-3.4.12/./configure --prefix=/usr/local/zabbix --enable-server --enable-proxy --enable-agent --enable-ipv6 --with-mysql --with-net-snmp --with-libcurl --with-openipmi --with-unixodbc --with-ldap --with-ssh2 --enable-javamake && make installchown -R zabbix.zabbix /usr/local/zabbix

修改zabbix配置文件

vi /usr/local/zabbix/etc/zabbix_server.confLogFile=/tmp/zabbix_server.logDebugLevel=3DBHost=192.168.75.251 #server和數據庫分離的寫法DBName=zabbixDBUser=zabbixDBPassword=zabbixDBSocket=/var/mysql/mysql.sockDBPort=3306StartPollers=10Timeout=4AlertScriptsPath=/usr/local/zabbix/share/zabbix/alertscriptsLogSlowQueries=3000CacheSize=1024M

后期配置文件的參數，根據需求做調整。

把zabbix程序包中的幾個sql文件傳到上面的mysql服務器，導入數據庫文件

[root@zabbix ~]# cd /opt/soft/zabbix-3.4.12/database/mysql[root@zabbix mysql]# lltotal 4876-rw-r--r--. 1 1001 1001 2877497 Jul 30 19:41 data.sql-rw-r--r--. 1 1001 1001 1978341 Jul 30 19:41 images.sql-rw-r--r--. 1 1001 1001 134791 Jul 30 19:41 schema.sql[root@zabbix mysql]# scp * [email protected]:/opt/

下面在mysql(192.168.75.251)服務器上操作

#mysql -u root –p

Enter password:

創建zabbix數據庫，字符集設置為utf8

mysql>create database zabbix character set utf8 collate utf8_bin;

在mysql數據庫中創建zabbix用戶，賦予zabbix用戶對zabbix數據庫的全部權限，允許zabbix服務器遠程訪問mysql

mysql>GRANT ALL PRIVILEGES ON zabbix.* TO [email protected] BY "zabbix";mysql>GRANT ALL PRIVILEGES ON zabbix.* TO zabbix@localhost IDENTIFIED BY "zabbix";mysql>flush privileges;mysql>show databases ;+--------------------+| Database |+--------------------+| information_schema || mysql || performance_schema || sys || zabbix |+--------------------+5 rows in set (0.00 sec)

導入數據文件，在控制臺操作

#mysql -u zabbix -p zabbix <schema.sql#mysql -u zabbix -p zabbix <images.sql#mysql -u zabbix -p zabbix <data.sql

2.3zabbix web部署

回到Zabbix Server主機操作。在上面已經安裝好httpd , 創建apache下創建zabbix目錄

mkdir /var/www/html/zabbix

拷貝zabbix包中的web界面到apache zabbix目錄下

\cp–rf /opt/soft/zabbix-3.4.12/frontends/php/* /var/www/html/zabbix/

配置web安全

chown -R apache.apache /var/www/html/zabbixchmod a+x /var/www/html/zabbix/conf/

拷貝zabbix包中服務啟動腳本(server/agentd)到linux系統服務啟動目錄

cp /opt/soft/zabbix-3.4.12/misc/init.d/fedora/core/zabbix_server zabbix_agentd/etc/init.d/

修改/etc/init.d/zabbix_server和/etc/init.d/zabbix_agentd

BASEDIR=/usr/local修改成BASEDIR=/usr/local/zabbix/

設置開機啟動

systemctl enable httpdsystemctl enable zabbix_serversystemctl enable zabbix_agentd/etc/init.d/zabbix_server start/etc/init.d/zabbix_agentd startsystemctl start httpd

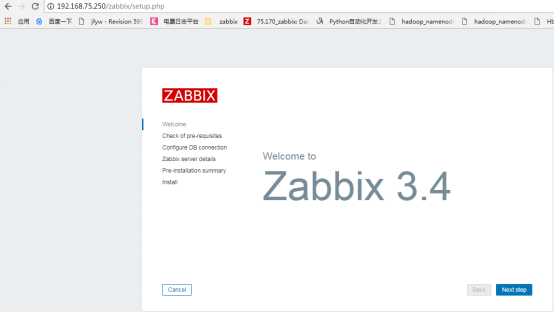

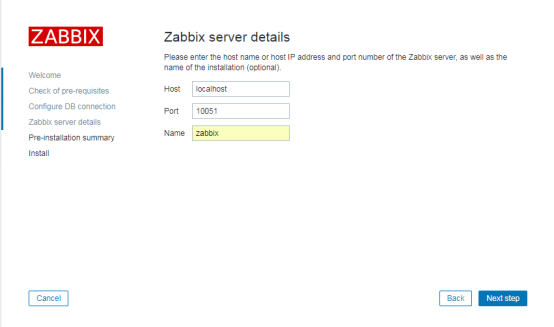

2.4web服務初始化

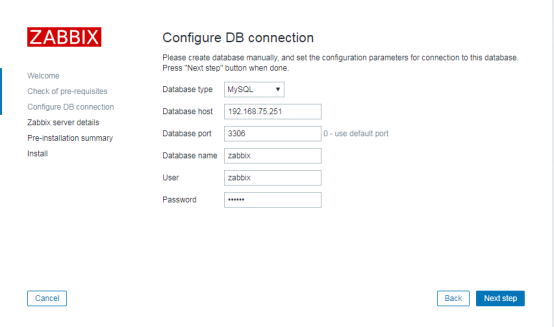

連接數據庫設置，寫mysql服務器所在機器，端口，數據庫名稱，用戶、密碼

三、安裝Zabbix Proxy

首先，在proxy機器上安裝mysql ，跟上面的安裝步驟一樣，只是在導入mysql文件時，只導入一個文件，

#mysql–uzabbix –p zabbix <schema.sql

安裝依賴包

yum -y install gcc* make curl curl-devel net-snmp net-snmp-devel perl-DBI httpd mariadb* mysql-devel libxml2-devel curl-devel unixODBC-devel net-snmp-devel OpenIPMI-devel openldap openldap-devel libevent-develjava-devellibssh2-devel

創建zabbix用戶和組

groupadd zabbixuseradd -g zabbix zabbix

編譯、安裝

tar zxvf zabbix-3.4.12.tar.gzcd zabbix-3.4.12/./configure --prefix=/opt/server/zabbix_proxy--enable-proxy --enable-agent --enable-ipv6 --with-mysql --with-net-snmp --with-libcurl --with-openipmi --with-unixodbc --with-ldap --with-ssh2 --enable-javamake && make installchown -R zabbix.zabbix /opt/server/zabbix_proxy

配置文件修改

Vi /usr/local/zabbix/etc/zabbix_proxy.confServer=192.168.75.250ServerPort=10051Hostname=zabbix_proxyLogFile=/tmp/zabbix_proxy.logDBHost=localhost#因?yàn)閙ysql和proxy安裝在同一臺機器DBName=zabbixDBUser=zabbixDBPassword=zabbixDBSocket=/var/mysql/mysql.sockConfigFrequency=60DataSenderFrequency=60StartPollers=5Timeout=4LogSlowQueries=3000

啟動proxy(要加入到開機自啟)

#/opt/server/zabbix_proxy/sbin/zabbix_proxy-c /opt/server/zabbix_proxy/etc/zabbix_proxy.confsystemctl enable zabbix_proxy

四、啟動zabbix_agentd客戶端

同上，編譯安裝zabbix時，客戶端也一起編譯了，把/usr/local 下面的zabbix目錄拷貝到客戶端，

修改配置文件

vi /usr/local/zabbix/etc/zabbix_agentd.confServer=zabbix_proxy_IP #建議所以客戶端都掛在proxy上，擴展性強Hostname=zabbix_agentd_hostname #填寫客戶端的主機名

啟動(要加入到開機自啟)

/usr/local/zabbix/sbin/zabbix_agentd-c /usr/local/zabbix/etc/zabbix_agentd.confecho "/usr/local/agent/sbin/zabbix_agentd -c /usr/local/agent/etc/zabbix_agentd.conf" >> /etc/rc.local

五、Web管理

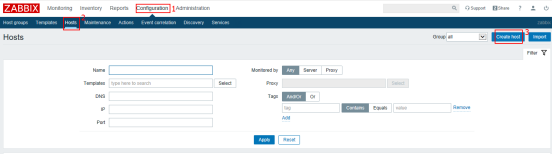

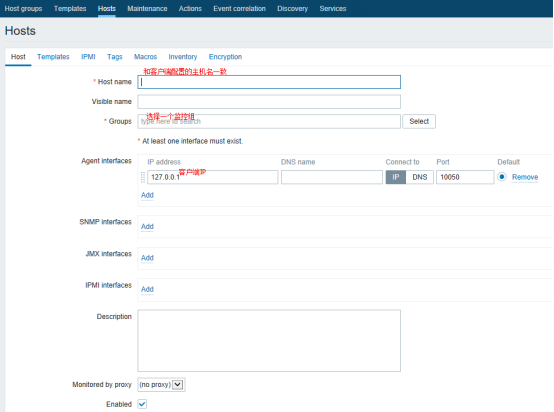

添加監控主機

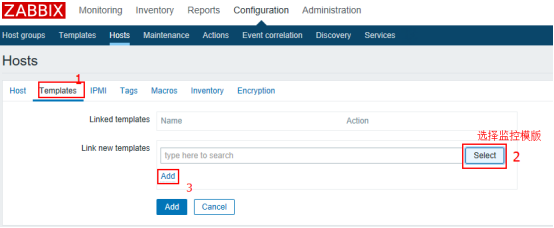

選擇主機監控模版

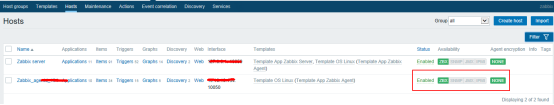

主機監控成功

總結

以上所述是小編給大家介紹的Zabbix安裝部署實踐，希望對大家有所幫助，如果大家有任何疑問請給我留言，小編會及時回復大家的。在此也非常感謝大家對網站的支持！
