一、簡介

MySQL Group Replication（簡稱MGR）字面意思是mysql組復制的意思,但其實他是一個高可用的集群架構,暫時只支持mysql5.7和mysql8.0版本.

是MySQL官方于2016年12月推出的一個全新的高可用與高擴展的解決方案,提供了高可用、高擴展、高可靠的MySQL集群服務.

也是mysql官方基于組復制概念并充分參考MariaDB Galera Cluster和Percona XtraDB Cluster結合而來的新的高可用集群架構.

MySQL Group Replication是建立在基于Paxos的XCom之上的，正因?yàn)橛辛薠Com基礎設施，保證數據庫狀態機在節點間的事務一致性，才能在理論和實踐中保證數據庫系統在不同節點間的事務一致性。

由一般主從復制概念擴展,多個節點共同組成一個數據庫集群，事務的提交必須經過半數以上節點同意方可提交,在集群中每個節點上都維護一個數據庫狀態機，保證節點間事務的一致性。

優點:

高一致性，基于原生復制及paxos協議的組復制技術.

高容錯性，有自動檢測機制，當出現宕機后,會自動剔除問題節點,其他節點可以正常使用(類似zk集群),當不同節點產生資源爭用沖突時,會按照先到先得處理,并且內置了自動化腦裂防護機制.

高擴展性，可隨時在線新增和移除節點,會自動同步所有節點上狀態，直到新節點和其他節點保持一致，自動維護新的組信息.

高靈活性，直接插件形式安裝(5.7.17后自帶.so插件),有單主模式和多主模式，單主模式下，只有主庫可以讀寫,其他從庫會加上super_read_only狀態,只能讀取不可寫入,出現故障會自動選主.

缺點:

還是太新,不太穩定,暫時性能還略差于PXC,對網絡穩定性要求很高,至少是同機房做.

二、環境介紹

MySQL版本：8.0.15

數據庫端口：3306

集群復制端口：33006

MGR插件：group_replication.so

10.115.88.18：單主

10.115.88.19：從

10.115.88.20：從

三、安裝MySQL 8.0.15

3.1.1 下載地址：

https://cdn.mysql.com//Downloads/MySQL-8.0/mysql-8.0.15-linux-glibc2.12-x86_64.tar

3.1.2： 安裝數據庫

解壓

tar -xf mysql-8.0.15-linux-glibc2.12-x86_64.tar -C /home/work

進入解壓目錄

cd /home/worktar xf mysql-8.0.15-linux-glibc2.12-x86_64.tar.gzmv mysql-8.0.15-linux-glibc2.12-x86_64 mysqlrm -rf *.xz

授予權限并創建數據目錄

cd /home/worktar xf mysql-8.0.15-linux-glibc2.12-x86_64.tar.gzmv mysql-8.0.15-linux-glibc2.12-x86_64 mysqlrm -rf *.xz chown -R work:work mysql mkdir data chown work:work data cd /home/work/mysql cd /home/work mkdir /home/work/relaylog chown -R work:work relaylog cd /home/work/mysql mkdir run chown -R work:work run

添加my.cnf文件

[client]default-character-set=utf8socket=/home/work/mysql/run/mysql.sock[mysqld]user = work port = 3306basedir=/home/work/mysqldatadir=/home/work/datasocket=/home/work/mysql/run/mysql.sockpid-file=/home/work/mysql/run/mysqld.pid# Disabling symbolic-links is recommended to prevent assorted security riskssymbolic-links=0lower_case_table_names = 1server-id = 183306 log-bin = mysql-binlog-bin-index = binlogs.indexbinlog_format = rowbinlog_rows_query_log_events = onbinlog_checksum = noneslave-parallel-type = LOGICAL_CLOCKslave-parallel-workers = 4slave_preserve_commit_order = 1#GITDgtid_mode = onenforce_gtid_consistency = 1log-slave-updates = 1binlog_gtid_simple_recovery = 1relay_log = /home/work/relaylog/relay.logrelay-log-index = /home/work/relaylog/relay.indexmaster_info_repository = tablerelay_log_info_repository = tableplugin_load='group_replication=group_replication.so'#MGR#GR配置項 基中l(wèi)oose前綴表示若group Replication plugin未加載 mysql server仍明治維新啟動transaction_write_set_extraction = XXHASH64 #對每個事務獲取write set，并且用XXHASH64算法獲取hash值loose-group_replication_group_name = 'aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa' #組名，此處可拿select.uuid()生成loose-group_replication_start_on_boot = off #在mysqld啟動時不自動啟動組復制loose-group_replication_local_address = '10.115.88.18:33006' #本節點的IP地址和端口，注意該端口是組內成員之間通信的端口，而不是MySQL對外提供服務的端口loose-group_replication_group_seeds = '10.115.88.18:33006,10.115.88.19:33006,10.115.88.20:33006' #種子節點的IP和端口號，新成員加入到集群的時候需要聯系種子節點，啟動集群的節點不使用該選項loose-group_replication_bootstrap_group = off #關閉，如果打開會造成腦裂 #是否啟動集群，注意，該選項任何時候只能用于一個節點，通常情況下啟動集群的時候使用，啟動之后需要關閉該選項loose-group_replication_member_weight = 50 #權重選擇skip-host-cacheskip-name-resolveskip-external-lockingcharacter-set-server=utf8lower_case_table_names=1event_scheduler=onlog_bin_trust_function_creators=onmax_connections = 3000 external-locking = FALSE max_allowed_packet = 32M sort_buffer_size = 8M join_buffer_size = 2M thread_cache_size = 300 #query_cache_size = 64M #query_cache_limit = 4M read_rnd_buffer_size = 8Minnodb_buffer_pool_size = 8096Minnodb_log_file_size = 128Minnodb_log_files_in_group = 2innodb_log_buffer_size = 2Minnodb_flush_log_at_trx_commit = 1sync_binlog = 1[mysqld_safe]log-error=/home/work/data/err.log

初始化數據庫

bin/mysqld --initialize --basedir=/home/work/mysql --lower-case-table-names=1 --datadir=/home/work/data/ --user=work

拷貝啟動文件

cp support-files/mysql.server /etc/init.d/mysqld

添加環境變量

echo ’export PATH=/home/work/mysql/bin:$PATH’ >>/etc/profilesource /etc/profile

數據庫啟動

/etc/init.d/mysqld start

修改數據庫密碼

alter user’root’@’localhost’ IDENTIFIED BY ’dashuaige’; flush privileges;

四、配置MGR主

4.1.1 配置my.cnf文件

修改binlog如下：

server-id = 103306log-bin = mysql-binlog-bin-index = binlogs.indexbinlog_format = rowbinlog_rows_query_log_events = onbinlog_checksum = noneslave-parallel-type = LOGICAL_CLOCKslave-parallel-workers = 4slave_preserve_commit_order = 1

修改GTID如下：

gtid_mode = onenforce_gtid_consistency = 1log-slave-updates = 1binlog_gtid_simple_recovery = 1relay_log = /home/work/relaylog/relay.logrelay-log-index = /home/work/relaylog/relay.indexmaster_info_repository = tablerelay_log_info_repository = table

添加MGR插件

plugin_load='group_replication=group_replication.so'

修改MGR參數

#GR配置項 基中l(wèi)oose前綴表示若group Replication plugin未加載 mysql server仍明治維新啟動transaction_write_set_extraction = XXHASH64 #對每個事務獲取write set，并且用XXHASH64算法獲取hash值loose-group_replication_group_name = 'aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa' #組名，此處可拿select.uuid()生成loose-group_replication_start_on_boot = off #在mysqld啟動時不自動啟動組復制loose-group_replication_local_address = '10.115.88.18:33006' #本節點的IP地址和端口，注意該端口是組內成員之間通信的端口，而不是MySQL對外提供服務的端口loose-group_replication_group_seeds = '10.115.88.18:33006,10.115.88.19:33006,10.115.88.20:33006' #種子節點的IP和端口號，新成員加入到集群的時候需要聯系種子節點，啟動集群的節點不使用該選項loose-group_replication_bootstrap_group = off #關閉，如果打開會造成腦裂 #是否啟動集群，注意，該選項任何時候只能用于一個節點，通常情況下啟動集群的時候使用，啟動之后需要關閉該選項loose-group_replication_member_weight = 50 #權重選擇

啟動數據庫

/etc/init.d/mysqld restart

4.1.2 配置每臺hosts主機解析

[root@bj1-10-115-88-18 mysql]# cat /etc/hosts127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4::1 localhost localhost.localdomain localhost6 localhost6.localdomain610.115.88.18 bj1-10-115-88-1810.115.88.19 bj1-10-115-88-1910.115.88.20 bj1-10-115-88-20

4.1.3 配置mgr第一個主節點

以下步驟在10.115.88.18主機上的mysql中執行

第一步：創建用于復制的用戶

set sql_log_bin=0;create user repuser@’%’ identified by ’repuser123’;grant replication slave,replication client on *.* to repuser@’%’;create user repuser@’127.0.0.1’ identified by ’repuser123’;grant replication slave,replication client on *.* to repuser@’127.0.0.1’;create user repuser@’localhost’ identified by ’repuser123’;grant replication slave,replication client on *.* to repuser@’localhost’;set sql_log_bin=1;

第二步：配置復制所使用的用戶

change master to master_user=’repuser’,master_password=’repuser123’ for channel ’group_replication_recovery’;

第三步：安裝mysql group replication這個插件

備注：如果在my.cnf里寫寫入plugin_load='group_replication=group_replication.so' 這步就可以不用操作install plugin group_replication soname ’group_replication.so’;通過show plugins;查看是否安裝成功

第四步：建個群(官方點的說法就是初始化一個復制組

set global group_replication_bootstrap_group=on;start group_replication;set global group_replication_bootstrap_group=off;select * from performance_schema.replication_group_members;

五、配置另外兩節點，從

以下步驟在所有從主機上的mysql中執行

第一步：創建用于復制的用戶

set sql_log_bin=0;create user repuser@’%’ identified by ’repuser123’;grant replication slave,replication client on *.* to repuser@’%’;create user repuser@’127.0.0.1’ identified by ’repuser123’;grant replication slave,replication client on *.* to repuser@’127.0.0.1’;create user repuser@’localhost’ identified by ’repuser123’;grant replication slave,replication client on *.* to repuser@’localhost’;set sql_log_bin=1;

第二步：配置復制所使用的用戶

change master to master_user=’repuser’,master_password=’repuser123’ for channel ’group_replication_recovery’;

第三步：安裝mysql group replication這個插件

備注：如果在my.cnf里寫寫入plugin_load='group_replication=group_replication.so' 這步就可以不用操作install plugin group_replication soname ’group_replication.so’;通過show plugins;查看是否安裝成功

第四步：加入前面創建好的復制組

start group_replication;select * from performance_schema.replication_group_members;

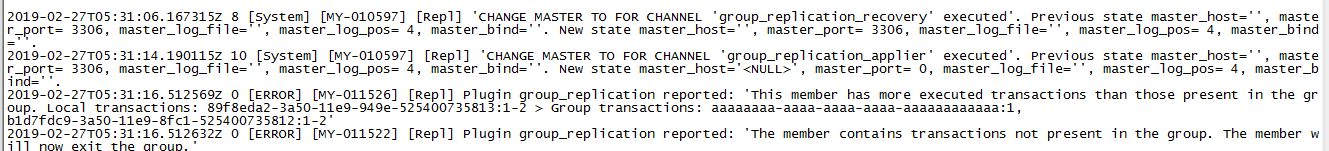

如下出現以下報錯

這是binlog導致的錯誤，執行以下

reset master;start group_replication;select * from performance_schema.replication_group_members;

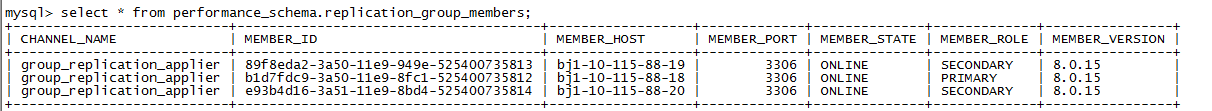

查看是MGR狀態：

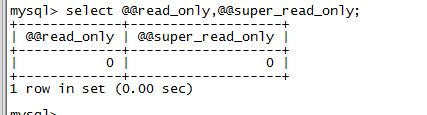

查看MGR主的讀寫狀態

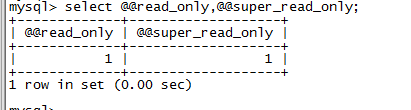

查看MGR兩臺從的讀寫狀態
