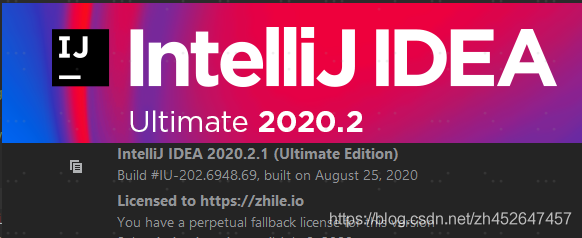

環境介紹 IDEA

我用的是2020.2

Gradle

安裝參考 Gradle安裝配置

我這安裝的是6.6.1

C:Usersherion>gradle -v------------------------------------------------------------Gradle 6.6.1------------------------------------------------------------Build time: 2020-08-25 16:29:12 UTCRevision: f2d1fb54a951d8b11d25748e4711bec8d128d7e3Kotlin: 1.3.72Groovy: 2.5.12Ant: Apache Ant(TM) version 1.10.8 compiled on May 10 2020JVM: 1.8.0_211 (Oracle Corporation 25.211-b12)OS: Windows 10 10.0 amd64

創建 gradle-parent New Project --> Spring Initalizr 選擇jdk版本，我這里使用1.8

Next

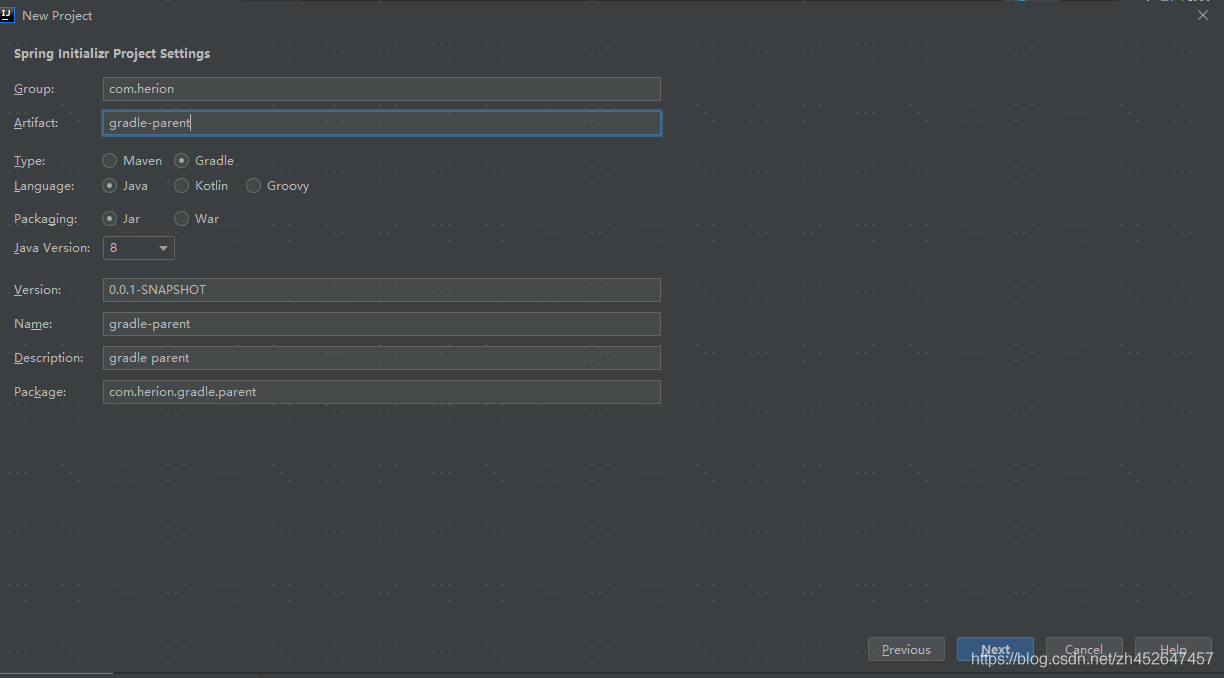

?> 根據需求修改 Group、Artifact、version 、Type、name、package 等，選擇所需依賴創建項目

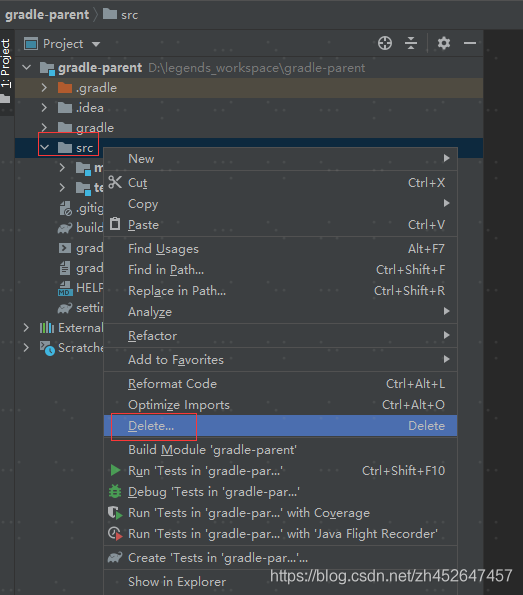

創建成功后刪除src 目錄

創建子模塊 gradle-demo

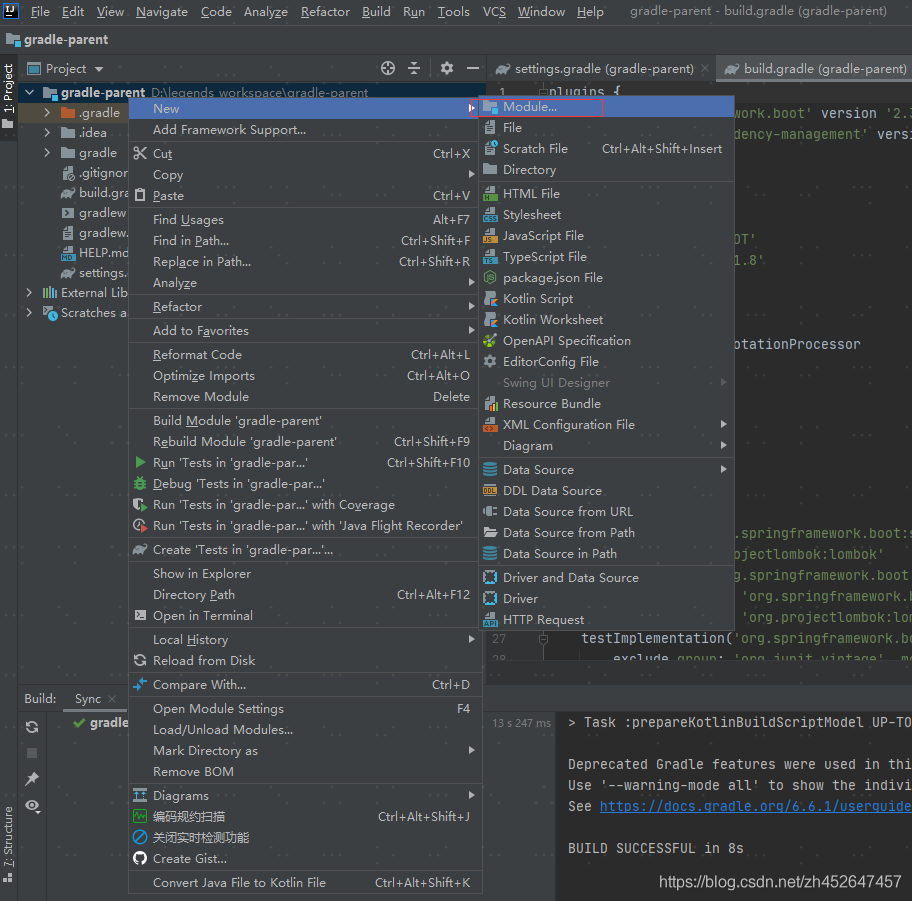

選中g(shù)radle-parent?> new -->Module

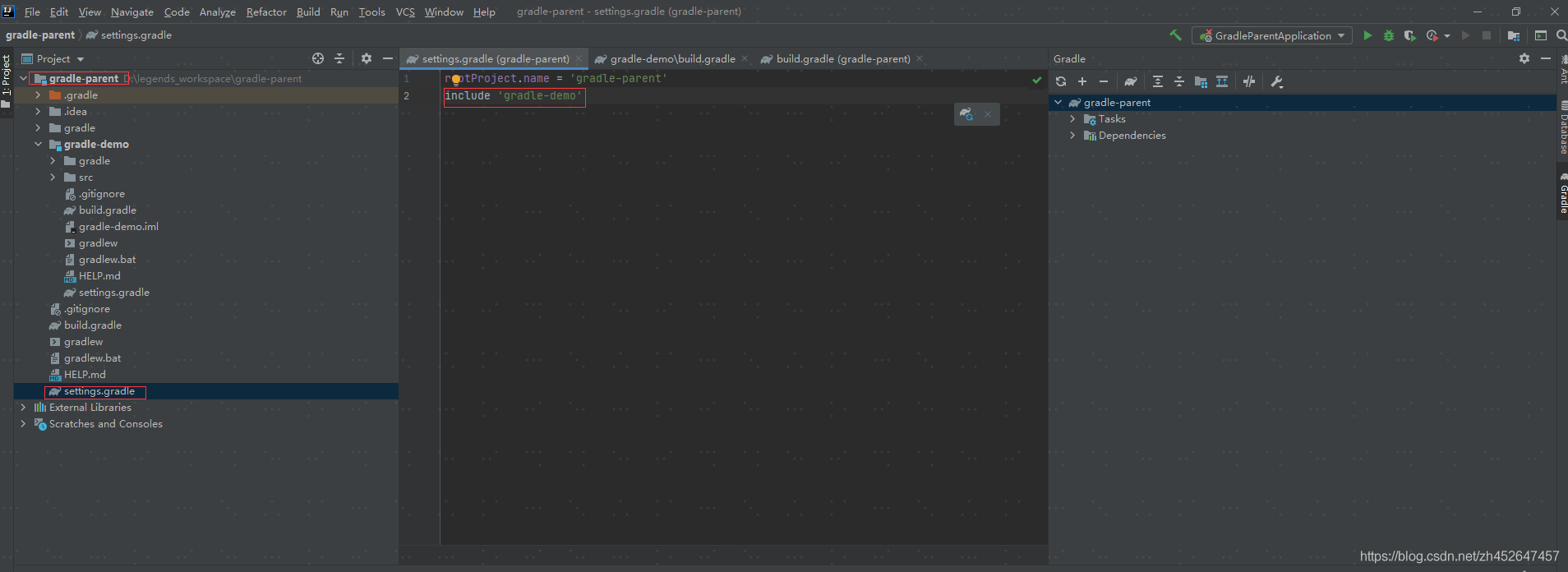

創建子模塊操作與創建gradle-parent 雷同，這里就不做復述了，創建好gradle-demo后在gradle-parent的settings.gradle 中引入模塊依賴 include ‘gradle-demo’

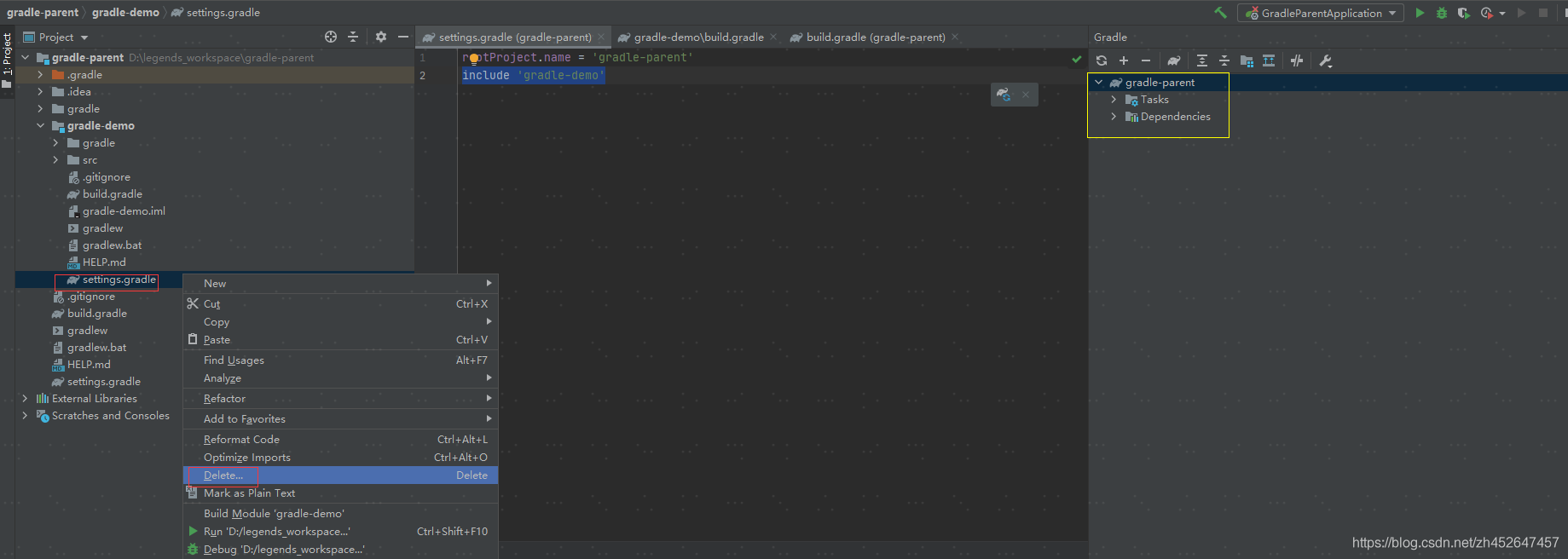

刪除gradle-demo 中settings.gradle文件，否則不能喝gradle-parent建立依賴關系

定義gradle 自身所需資源

buildscript { ext { springBootVersion = ’2.3.4.RELEASE’ springBootManagementVersion = ’1.0.8.RELEASE’ springCloudVersion = ’Hoxton.SR6’ REPOSITORY_HOME = 'http://maven.aliyun.com' } repositories { maven { url ’${REPOSITORY_HOME}/nexus/content/groups/public/’ } mavenCentral() maven { url ’https://repo.spring.io/snapshot’ } maven { url ’https://repo.spring.io/milestone’ } } dependencies { classpath('org.springframework.boot:spring-boot-gradle-plugin:${springBootVersion}') classpath('io.spring.gradle:dependency-management-plugin:${springBootManagementVersion}') }}

修改gradle-parent項目build.gradle 配置全項目通用配置

allprojects { apply plugin: ’java’ apply plugin: ’idea’ group = ’com.herion’ sourceCompatibility = JavaVersion.VERSION_1_8 targetCompatibility = JavaVersion.VERSION_1_8}

子項目通用配置

subprojects { apply plugin: ’org.springframework.boot’ apply plugin: ’io.spring.dependency-management’ [compileJava, compileTestJava, javadoc]*.options*.encoding = ’UTF-8’ //倉庫 repositories { maven { url ’${REPOSITORY_HOME}/nexus/content/groups/public/’ } mavenCentral() maven { url ’https://repo.spring.io/snapshot’ } maven { url ’https://repo.spring.io/milestone’ } } dependencies { implementation ’org.springframework.boot:spring-boot-starter’ compileOnly ’org.projectlombok:lombok’ developmentOnly ’org.springframework.boot:spring-boot-devtools’ annotationProcessor ’org.springframework.boot:spring-boot-configuration-processor’ annotationProcessor ’org.projectlombok:lombok’ testImplementation(’org.springframework.boot:spring-boot-starter-test’) { exclude group: ’org.junit.vintage’, module: ’junit-vintage-engine’ } } dependencyManagement { imports { mavenBom('org.springframework.boot:spring-boot-dependencies:${springBootVersion}') } imports { mavenBom 'org.springframework.cloud:spring-cloud-dependencies:${springCloudVersion}' } } test { useJUnitPlatform() }}

發布插件配置

/** * 發布插件 */ publishing { publications { mavenJava(MavenPublication) { from components.java versionMapping { usage(’java-api’) { fromResolutionOf(’runtimeClasspath’) } usage(’java-runtime’) { fromResolutionResult() } } } } // 發布倉庫 repositories { maven { // TODO 換成自己的私服地址 def releasesRepoUrl = 'http://my.repo.com/nexus/repository/maven-releases' def snapshotsRepoUrl = 'http://my.repo..com/nexus/repository/maven-snapshots' url = version.endsWith(’SNAPSHOT’) ? snapshotsRepoUrl : releasesRepoUrl credentials { username nexusUser password nexusPassword } } } } configurations { [apiElements, runtimeElements].each { it.outgoing.artifacts.removeIf { it.buildDependencies.getDependencies(null).contains(jar) } it.outgoing.artifact(bootJar) } }

驗證

Gradle 查看所有項目

gradle projects> Task :projects------------------------------------------------------------Root project------------------------------------------------------------Root project ’gradle-parent’+--- Project ’:gradle-common’+--- Project ’:gradle-demo’--- Project ’:gradle-demo2’To see a list of the tasks of a project, run gradle <project-path>:tasksFor example, try running gradle :gradle-common:tasksDeprecated Gradle features were used in this build, making it incompatible with Gradle 7.0.Use ’--warning-mode all’ to show the individual deprecation warnings.See https://docs.gradle.org/6.6.1/userguide/command_line_interface.html#sec:command_line_warningsBUILD SUCCESSFUL in 4s1 actionable task: 1 executed

編譯項目

$ gradle buildDeprecated Gradle features were used in this build, making it incompatible with Gradle 7.0.Use ’--warning-mode all’ to show the individual deprecation warnings.See https://docs.gradle.org/6.6.1/userguide/command_line_interface.html#sec:command_line_warningsBUILD SUCCESSFUL in 5s12 actionable tasks: 12 up-to-date

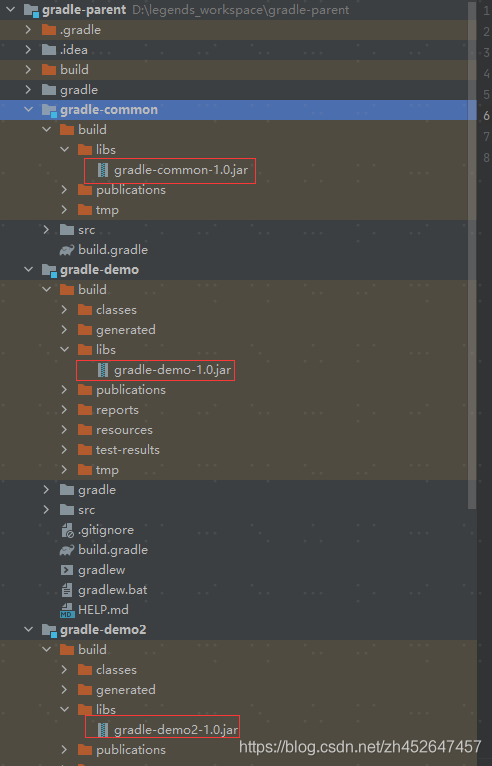

執行結果

發布jar包到nexus 命令

$ gradle publishMavenJavaPublicationToMavenRepository> Task :gradle-common:publishMavenJavaPublicationToMavenRepository> Task :gradle-demo:publishMavenJavaPublicationToMavenRepository> Task :gradle-demo2:publishMavenJavaPublicationToMavenRepositoryDeprecated Gradle features were used in this build, making it incompatible with Gradle 7.0.Use ’--warning-mode all’ to show the individual deprecation warnings.See https://docs.gradle.org/6.6.1/userguide/command_line_interface.html#sec:command_line_warningsBUILD SUCCESSFUL in 24s16 actionable tasks: 13 executed, 3 up-to-date

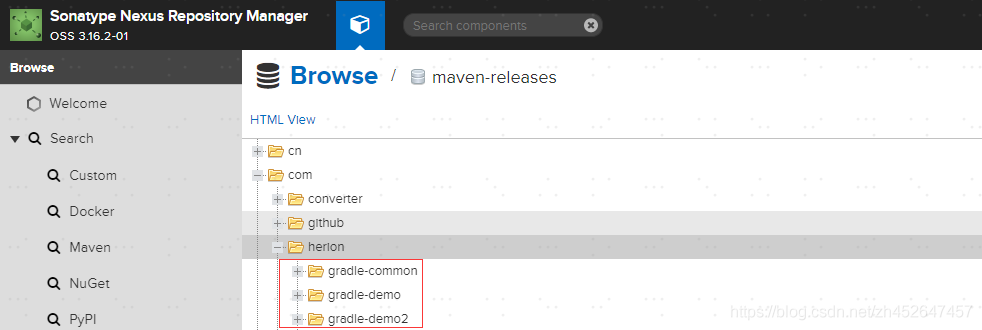

執行結果

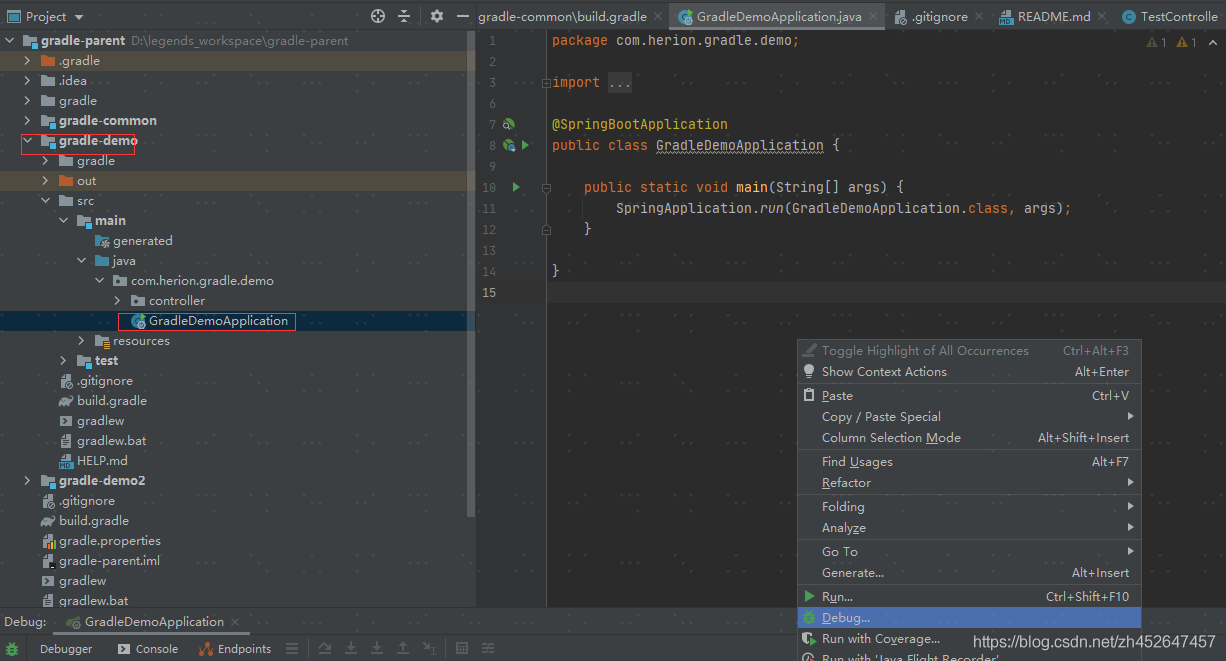

gradle-demo 驗證 啟動項目

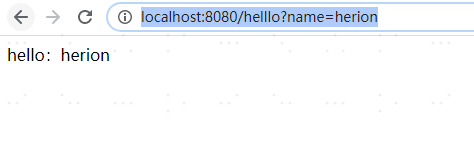

瀏覽器訪問http://localhost:8080/helllo?name=herion

demo 源碼地址
