springboot 實現mqtt物聯網的示例代碼

瀏覽：182日期：2023-03-19 16:36:52

Springboot整合mybatisPlus+mysql+druid+swaggerUI+ mqtt 整合mqtt整合druid整合mybatis-plus完整pom完整yml整合swaggerUi整合log4j MQTT 物聯網系統基本架構本物聯網系列 mqtt)

整合mqtt

<dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-integration</artifactId> </dependency> <dependency> <groupId>org.springframework.integration</groupId> <artifactId>spring-integration-stream</artifactId> </dependency> <dependency> <groupId>org.springframework.integration</groupId> <artifactId>spring-integration-mqtt</artifactId> </dependency>

yml

iot: mqtt: clientId: ${random.value} defaultTopic: topic shbykjTopic: shbykj_topic url: tcp://127.0.0.1:1883 username: admin password: admin completionTimeout: 3000

package com.shbykj.handle.mqtt;import lombok.Getter;import lombok.Setter;import org.springframework.boot.context.properties.ConfigurationProperties;import org.springframework.integration.annotation.IntegrationComponentScan;import org.springframework.stereotype.Component;/** * @Author: wxm * @Description: mqtt基礎配置類 */@Getter@Setter@Component@IntegrationComponentScan@ConfigurationProperties(prefix = 'iot.mqtt')public class BykjMqttConfig { /* * * 服務地址 */ private String url; /** * 客戶端id */ private String clientId; /* * * 默認主題 */ private String defaultTopic; /* * * 用戶名和密碼*/ private String username; private String password; /** * 超時時間 */ private int completionTimeout; /** * shbykj自定義主題 */ private String shbykjTopic;}

package com.shbykj.handle.mqtt.producer;import org.springframework.integration.annotation.MessagingGateway;import org.springframework.integration.mqtt.support.MqttHeaders;import org.springframework.messaging.handler.annotation.Header;/** * @description rabbitmq mqtt協議網關接口 * @date 2020/6/8 18:26 */@MessagingGateway(defaultRequestChannel = 'iotMqttInputChannel')public interface IotMqttGateway { void sendMessage2Mqtt(String data); void sendMessage2Mqtt(String data, @Header(MqttHeaders.TOPIC) String topic); void sendMessage2Mqtt(@Header(MqttHeaders.TOPIC) String topic, @Header(MqttHeaders.QOS) int qos, String payload);}

package com.shbykj.handle.mqtt;import org.eclipse.paho.client.mqttv3.MqttConnectOptions;import org.slf4j.Logger;import org.slf4j.LoggerFactory;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.context.annotation.Bean;import org.springframework.context.annotation.Configuration;import org.springframework.integration.annotation.ServiceActivator;import org.springframework.integration.channel.DirectChannel;import org.springframework.integration.mqtt.core.DefaultMqttPahoClientFactory;import org.springframework.integration.mqtt.core.MqttPahoClientFactory;import org.springframework.messaging.MessageChannel;import org.springframework.messaging.MessageHandler;import org.springframework.messaging.MessagingException;@Configurationpublic class IotMqttProducerConfig { public final Logger logger = LoggerFactory.getLogger(this.getClass()); @Autowired private BykjMqttConfig mqttConfig; /* * * MQTT連接器選項 * * */ @Bean(value = 'getMqttConnectOptions') public MqttConnectOptions getMqttConnectOptions1() { MqttConnectOptions mqttConnectOptions = new MqttConnectOptions(); // 設置是否清空session,這里如果設置為false表示服務器會保留客戶端的連接記錄，這里設置為true表示每次連接到服務器都以新的身份連接 mqttConnectOptions.setCleanSession(true); // 設置超時時間單位為秒 mqttConnectOptions.setConnectionTimeout(mqttConfig.getCompletionTimeout()); mqttConnectOptions.setAutomaticReconnect(true); mqttConnectOptions.setUserName(mqttConfig.getUsername()); mqttConnectOptions.setPassword(mqttConfig.getPassword().toCharArray()); mqttConnectOptions.setServerURIs(new String[]{mqttConfig.getUrl()}); // 設置會話心跳時間單位為秒服務器會每隔1.5*20秒的時間向客戶端發送心跳判斷客戶端是否在線，但這個方法并沒有重連的機制 mqttConnectOptions.setKeepAliveInterval(10); // 設置“遺囑”消息的話題，若客戶端與服務器之間的連接意外中斷，服務器將發布客戶端的“遺囑”消息。 //mqttConnectOptions.setWill('willTopic', WILL_DATA, 2, false); return mqttConnectOptions; } /** * mqtt工廠 * * @return */ @Bean public MqttPahoClientFactory mqttClientFactory() { DefaultMqttPahoClientFactory factory = new DefaultMqttPahoClientFactory();// factory.setServerURIs(mqttConfig.getServers()); factory.setConnectionOptions(getMqttConnectOptions1()); return factory; } @Bean public MessageChannel iotMqttInputChannel() { return new DirectChannel(); } // @Bean// @ServiceActivator(inputChannel = 'iotMqttInputChannel')// public MessageHandler mqttOutbound() {// MqttPahoMessageHandler messageHandler = new MqttPahoMessageHandler(mqttConfig.getClientId(), mqttClientFactory());// messageHandler.setAsync(false);// messageHandler.setDefaultQos(2);// messageHandler.setDefaultTopic(mqttConfig.getDefaultTopic());// return messageHandler;// } @Bean @ServiceActivator(inputChannel = 'iotMqttInputChannel') public MessageHandler handlerTest() { return message -> { try { String string = message.getPayload().toString(); System.out.println(string); } catch (MessagingException ex) { ex.printStackTrace(); logger.info(ex.getMessage()); } }; }}

package com.shbykj.handle.mqtt;import org.eclipse.paho.client.mqttv3.MqttConnectOptions;import org.slf4j.Logger;import org.slf4j.LoggerFactory;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.context.annotation.Bean;import org.springframework.context.annotation.Configuration;import org.springframework.integration.annotation.ServiceActivator;import org.springframework.integration.channel.DirectChannel;import org.springframework.integration.core.MessageProducer;import org.springframework.integration.mqtt.core.DefaultMqttPahoClientFactory;import org.springframework.integration.mqtt.core.MqttPahoClientFactory;import org.springframework.integration.mqtt.inbound.MqttPahoMessageDrivenChannelAdapter;import org.springframework.integration.mqtt.outbound.MqttPahoMessageHandler;import org.springframework.integration.mqtt.support.DefaultPahoMessageConverter;import org.springframework.messaging.Message;import org.springframework.messaging.MessageChannel;import org.springframework.messaging.MessageHandler;import org.springframework.messaging.MessagingException;/** * @Author: xiaofu * @Description: 消息訂閱配置 * @date 2020/6/8 18:24 */@Configurationpublic class IotMqttSubscriberConfig { public final Logger logger = LoggerFactory.getLogger(this.getClass()); @Autowired private MqttReceiveHandle mqttReceiveHandle; @Autowired private BykjMqttConfig mqttConfig; /* * * MQTT連接器選項 * * */ @Bean(value = 'getMqttConnectOptions') public MqttConnectOptions getMqttConnectOptions1() { MqttConnectOptions mqttConnectOptions = new MqttConnectOptions(); // 設置是否清空session,這里如果設置為false表示服務器會保留客戶端的連接記錄，這里設置為true表示每次連接到服務器都以新的身份連接 mqttConnectOptions.setCleanSession(true); // 設置超時時間單位為秒 mqttConnectOptions.setConnectionTimeout(10); mqttConnectOptions.setAutomaticReconnect(true);// mqttConnectOptions.setUserName(mqttConfig.getUsername());// mqttConnectOptions.setPassword(mqttConfig.getPassword().toCharArray()); mqttConnectOptions.setServerURIs(new String[]{mqttConfig.getUrl()}); // 設置會話心跳時間單位為秒服務器會每隔1.5*20秒的時間向客戶端發送心跳判斷客戶端是否在線，但這個方法并沒有重連的機制 mqttConnectOptions.setKeepAliveInterval(10); // 設置“遺囑”消息的話題，若客戶端與服務器之間的連接意外中斷，服務器將發布客戶端的“遺囑”消息。 //mqttConnectOptions.setWill('willTopic', WILL_DATA, 2, false); return mqttConnectOptions; } /* * *MQTT信息通道（生產者） ** */ @Bean public MessageChannel iotMqttOutboundChannel() { return new DirectChannel(); } /* * *MQTT消息處理器（生產者） ** */ @Bean @ServiceActivator(inputChannel = 'iotMqttOutboundChannel') public MessageHandler mqttOutbound() { MqttPahoMessageHandler messageHandler = new MqttPahoMessageHandler(mqttConfig.getClientId(), mqttClientFactory()); messageHandler.setAsync(true); messageHandler.setDefaultTopic(mqttConfig.getDefaultTopic()); return messageHandler; } /* * *MQTT工廠 ** */ @Bean public MqttPahoClientFactory mqttClientFactory() { DefaultMqttPahoClientFactory factory = new DefaultMqttPahoClientFactory();// factory.setServerURIs(mqttConfig.getServers()); factory.setConnectionOptions(getMqttConnectOptions1()); return factory; } /* * *MQTT信息通道（消費者） ** */ @Bean public MessageChannel iotMqttInputChannel() { return new DirectChannel(); } /** * 配置client,監聽的topic * MQTT消息訂閱綁定（消費者） ***/ @Bean public MessageProducer inbound() { MqttPahoMessageDrivenChannelAdapter adapter = new MqttPahoMessageDrivenChannelAdapter(mqttConfig.getClientId(), mqttClientFactory(), mqttConfig.getDefaultTopic(), mqttConfig.getShbykjTopic()); adapter.setCompletionTimeout(mqttConfig.getCompletionTimeout()); adapter.setConverter(new DefaultPahoMessageConverter()); adapter.setQos(2); adapter.setOutputChannel(iotMqttInputChannel()); return adapter; } /** * @author wxm * @description 消息訂閱 * @date 2020/6/8 18:20 */ @Bean @ServiceActivator(inputChannel = 'iotMqttInputChannel') public MessageHandler handler() { return new MessageHandler() { @Override public void handleMessage(Message<?> message) throws MessagingException { //處理接收消息 try { mqttReceiveHandle.handle(message); } catch (Exception e) { logger.warn('消息處理異常'+e.getMessage()); e.printStackTrace(); } } }; }}

package com.shbykj.handle.mqtt;import com.baomidou.mybatisplus.core.conditions.query.QueryWrapper;import com.shbykj.handle.common.DataCheck;import com.shbykj.handle.common.RedisKey;import com.shbykj.handle.common.RedisUtils;import com.shbykj.handle.common.constants.Constants;import com.shbykj.handle.common.model.ShbyCSDeviceEntity;import com.shbykj.handle.common.model.sys.SysInstrument;import com.shbykj.handle.resolve.mapper.SysInstrumentMapper;import com.shbykj.handle.resolve.util.DateUtils;import com.shbykj.handle.resolve.util.ShbyCSDeviceUtils;import lombok.extern.slf4j.Slf4j;import org.apache.commons.collections.BidiMap;import org.apache.commons.collections.bidimap.DualHashBidiMap;import org.apache.commons.lang3.StringUtils;import org.eclipse.paho.client.mqttv3.IMqttDeliveryToken;import org.eclipse.paho.client.mqttv3.MqttCallback;import org.eclipse.paho.client.mqttv3.MqttMessage;import org.slf4j.Logger;import org.slf4j.LoggerFactory;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.beans.factory.annotation.Value;import org.springframework.integration.mqtt.support.MqttHeaders;import org.springframework.messaging.Message;import org.springframework.stereotype.Component;import org.springframework.transaction.annotation.Transactional;import java.text.SimpleDateFormat;import java.util.Date;import java.util.HashMap;import java.util.Map;/* * * mqtt客戶端消息處理類 * **/@Component@Slf4j@Transactionalpublic class MqttReceiveHandle implements MqttCallback { private static final Logger logger = LoggerFactory.getLogger(MqttReceiveHandle.class); @Value('${shbykj.checkCrc}') private boolean checkcrc; @Autowired private SysInstrumentMapper sysInstrumentMapper; @Autowired private RedisUtils redisUtils; public static BidiMap bidiMap = new DualHashBidiMap(); //記錄bykj協議內容 public static Map<String, Map<String, Object>> devMap = new HashMap(); //記錄上限數量// public static Map<String, ChannelHandlerContext> ctxMap = new HashMap(); public void handle(Message<?> message) { try { logger.info('{},客戶端號：{},主題：{}，QOS:{}，消息接收到的數據：{}', new SimpleDateFormat('yyyy-MM-dd HH:mm:ss').format(new Date()), message.getHeaders().get(MqttHeaders.ID), message.getHeaders().get(MqttHeaders.RECEIVED_TOPIC), message.getHeaders().get(MqttHeaders.RECEIVED_QOS), message.getPayload()); //處理mqtt數據 this.handle(message.getPayload().toString()); } catch (Exception e) { e.printStackTrace(); log.error('處理錯誤' + e.getMessage()); } } private void handle(String str) throws Exception { boolean flag = this.dataCheck(str); if (flag) { ShbyCSDeviceEntity shbyCSDeviceEntity = ShbyCSDeviceUtils.convertToSysInstrumentEntity(str); String deviceNumber = shbyCSDeviceEntity.getPN(); String smpId = shbyCSDeviceEntity.getSMP_ID(); String smpName = shbyCSDeviceEntity.getSMP_NAME(); String smpWt = shbyCSDeviceEntity.getSMP_WT(); if (StringUtils.isEmpty(smpId) || StringUtils.isEmpty(smpName) || StringUtils.isEmpty(smpWt)) { log.error('過濾無實際作用報文信息', str); logger.error('過濾無實際作用報文信息', str); return; } //判斷設備id是否存在數據庫中，存在才進行數據部分處理 //不存在就提醒需要添加設備： QueryWrapper<SysInstrument> wrapper = new QueryWrapper(); wrapper.eq('number', deviceNumber); wrapper.eq('is_deleted', Constants.NO); SysInstrument sysInstrument = sysInstrumentMapper.selectOne(wrapper); if (null == sysInstrument) { log.error('碳氧儀不存在或已刪除，設備號：{}', deviceNumber); logger.error('碳氧儀不存在或已刪除，設備號：{}', deviceNumber); return; } try { //增加實時數據 String instrumentId = sysInstrument.getId().toString(); String realDataKey = RedisKey.CSdevice_DATA_KEY + instrumentId; this.redisUtils.set(realDataKey, shbyCSDeviceEntity); System.out.println(shbyCSDeviceEntity); //通訊時間 String onlineTime = 'shbykj_mqtt:onlines:' + instrumentId; this.redisUtils.set(onlineTime, shbyCSDeviceEntity.getDataTime(), (long) Constants.RedisTimeOut.REAL_TIME_OUT); log.info('實時數據已經更新：設備主鍵id' + instrumentId); logger.info('{} 實時數據已經更新：設備主鍵id:{}',new SimpleDateFormat('yyyy-MM-dd HH:mm:ss').format(new Date()),instrumentId); } catch (Exception var1) { log.error('redis處理實時報文數據邏輯異常：' + var1.getMessage()); logger.error('redis處理實時報文數據邏輯異常：' + var1.getMessage()); } } } private boolean dataCheck(String message) { boolean flag = DataCheck.receiverCheck(message); if (!flag) { return false; } else { int i = message.indexOf('QN='); if (i < 0) { log.warn('數據包中沒有QN號碼: ' + message); logger.warn('數據包中沒有QN號碼: ' + message); return false; } else { i = message.indexOf('PN='); if (i < 0) { log.warn('數據包中沒有PN號碼: ' + message); logger.warn('數據包中沒有PN號碼: ' + message); return false; } else { if (this.checkcrc) { flag = DataCheck.checkCrc(message); if (!flag) { log.warn('crc校驗失敗: ' + message); logger.warn('數據包中沒有PN號碼: ' + message); return false; } } return true; } } } } /** * 連接丟失 * * @param throwable */ @Override public void connectionLost(Throwable throwable) { logger.warn('連接丟失-客戶端:｛｝,原因：{}', throwable.getMessage()); } /** * 消息已到達 * * @param s * @param mqttMessage * @throws Exception */ @Override public void messageArrived(String s, MqttMessage mqttMessage) throws Exception { } /** * 完成消息回調 * * @param iMqttDeliveryToken */ @Override public void deliveryComplete(IMqttDeliveryToken iMqttDeliveryToken) { }}整合druid

pom

<dependency> <groupId>com.alibaba</groupId> <artifactId>druid-spring-boot-starter</artifactId> <version>1.1.10</version> </dependency>

druid-bean.xml

<?xml version='1.0' encoding='UTF-8'?><beans xmlns='http://www.springframework.org/schema/beans' xmlns:aop='http://www.springframework.org/schema/aop' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xsi:schemaLocation=' http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd'>  <bean class='com.alibaba.druid.support.spring.stat.DruidStatInterceptor'></bean>  <bean scope='prototype'> <property name='patterns'> <list> <value>com.shbykj.*.service.*.impl.*</value> </list> </property> </bean> <aop:config proxy-target-class='true'> <aop:advisor advice-ref='druid-stat-interceptor' pointcut-ref='druid-stat-pointcut' /> </aop:config></beans>

yml

#springspring: main: allow-bean-definition-overriding: true # mysql DATABASE CONFIG datasource: druid: filters: stat,wall,log4j2 continueOnError: true type: com.alibaba.druid.pool.DruidDataSource url: jdbc:mysql://localhost:3306/mqttdb?useSSL=false&useUnicode=true&characterEncoding=utf-8&serverTimezone=UTC&allowPublicKeyRetrieval=true username: root password: 123456 driver-class-name: com.mysql.jdbc.Driver # see https://github.com/alibaba/druid initialSize: 15 minIdle: 10 maxActive: 200 maxWait: 60000 timeBetweenEvictionRunsMillis: 60000 validationQuery: SELECT 1 testWhileIdle: true testOnBorrow: false testOnReturn: false poolPreparedStatements: true keepAlive: true maxPoolPreparedStatementPerConnectionSize: 50 connectionProperties: druid.stat.mergeSql: true druid.stat.slowSqlMillis: 5000

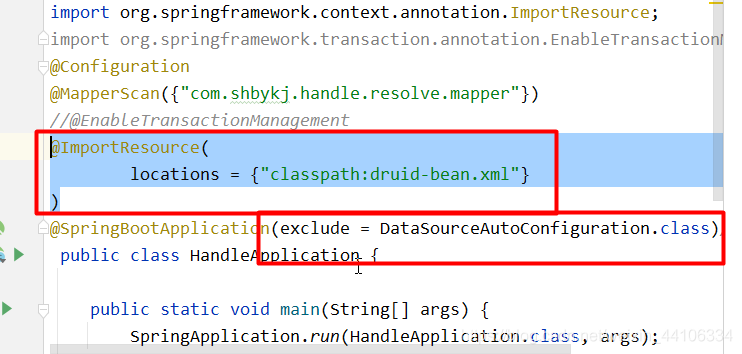

啟動類加上注解@ImportResource( locations = {'classpath:druid-bean.xml'} )

springboot 實現mqtt物聯網的示例代碼

整合mybatis-plus

pom

<dependency> <groupId>com.baomidou</groupId> <artifactId>spring-wind</artifactId> <version>1.1.5</version> <exclusions> <exclusion> <groupId>com.baomidou</groupId> <artifactId>mybatis-plus</artifactId> </exclusion> </exclusions> </dependency> <dependency> <groupId>com.baomidou</groupId> <version>3.1.2</version> <artifactId>mybatis-plus-boot-starter</artifactId> </dependency> <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> <version>5.1.44</version> </dependency>  <dependency> <groupId>com.github.pagehelper</groupId> <artifactId>pagehelper-spring-boot-starter</artifactId> <version>1.2.12</version> </dependency>

yml

#mybatismybatis-plus: mapper-locations: classpath:/mapper/*.xml typeAliasesPackage: org.spring.springboot.entity global-config: #主鍵類型 0:'數據庫ID自增', 1:'用戶輸入ID',2:'全局唯一ID (數字類型唯一ID)', 3:'全局唯一ID UUID'; id-type: 3 #字段策略 0:'忽略判斷',1:'非 NULL 判斷'),2:'非空判斷' field-strategy: 2 #駝峰下劃線轉換 db-column-underline: true #刷新mapper 調試神器 refresh-mapper: true configuration: map-underscore-to-camel-case: true cache-enabled: false

啟動類注解@MapperScan({'com.shbykj.handle.resolve.mapper'})

完整pom

<?xml version='1.0' encoding='UTF-8'?><project xmlns='http://maven.apache.org/POM/4.0.0' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xsi:schemaLocation='http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd'> <modelVersion>4.0.0</modelVersion> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>2.4.1</version> <relativePath/>  </parent> <groupId>com.shbykj</groupId> <artifactId>handle</artifactId> <version>0.0.1-SNAPSHOT</version> <name>handle</name> <description>Demo project for Spring Boot</description> <properties> <java.version>1.8</java.version> </properties> <dependencies>    <dependency> <groupId>org.slf4j</groupId> <artifactId>slf4j-simple</artifactId> <version>1.7.25</version> <scope>compile</scope> </dependency>  <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-log4j2</artifactId> </dependency>  <dependency> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> </dependency>  <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter</artifactId> <exclusions> <exclusion> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-logging</artifactId> </exclusion> </exclusions> </dependency>  <dependency> <groupId>io.springfox</groupId> <artifactId>springfox-swagger-ui</artifactId> <version>2.9.2</version> </dependency>  <dependency> <groupId>io.springfox</groupId> <artifactId>springfox-swagger2</artifactId> <version>2.9.2</version> <exclusions> <exclusion> <groupId>com.google.guava</groupId> <artifactId>guava</artifactId> </exclusion> </exclusions> </dependency>  <dependency> <groupId>com.baomidou</groupId> <artifactId>spring-wind</artifactId> <version>1.1.5</version> <exclusions> <exclusion> <groupId>com.baomidou</groupId> <artifactId>mybatis-plus</artifactId> </exclusion> </exclusions> </dependency> <dependency> <groupId>com.baomidou</groupId> <version>3.1.2</version> <artifactId>mybatis-plus-boot-starter</artifactId> </dependency> <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> <version>5.1.44</version> </dependency> <dependency> <groupId>com.alibaba</groupId> <artifactId>druid-spring-boot-starter</artifactId> <version>1.1.10</version> </dependency>  <dependency> <groupId>com.github.pagehelper</groupId> <artifactId>pagehelper-spring-boot-starter</artifactId> <version>1.2.12</version> </dependency>  <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-devtools</artifactId> <optional>true</optional> <scope>runtime</scope> </dependency>  <dependency> <groupId>com.google.code.gson</groupId> <artifactId>gson</artifactId> </dependency>  <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-data-redis</artifactId> </dependency>  <dependency> <groupId>org.apache.commons</groupId> <artifactId>commons-lang3</artifactId> <version>3.8.1</version> </dependency>   <dependency> <groupId>com.google.guava</groupId> <artifactId>guava</artifactId> <version>30.0-jre</version> </dependency>  <dependency> <groupId>cn.hutool</groupId> <artifactId>hutool-core</artifactId> <version>5.5.0</version> </dependency>  <dependency> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> <optional>true</optional> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-test</artifactId> <scope>test</scope> </dependency> </dependencies> <build> <plugins> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> </plugin> </plugins> </build></project>完整yml

server: port: 8082#springspring: devtools: restart: enabled: true main: allow-bean-definition-overriding: true # mysql DATABASE CONFIG datasource: druid: filters: stat,wall,log4j2 continueOnError: true type: com.alibaba.druid.pool.DruidDataSource url: jdbc:mysql://localhost:3306/mqttdb?useSSL=false&useUnicode=true&characterEncoding=utf-8&serverTimezone=UTC&allowPublicKeyRetrieval=true username: root password: 123456 driver-class-name: com.mysql.jdbc.Driver # see https://github.com/alibaba/druid initialSize: 15 minIdle: 10 maxActive: 200 maxWait: 60000 timeBetweenEvictionRunsMillis: 60000 validationQuery: SELECT 1 testWhileIdle: true testOnBorrow: false testOnReturn: false poolPreparedStatements: true keepAlive: true maxPoolPreparedStatementPerConnectionSize: 50 connectionProperties: druid.stat.mergeSql: true druid.stat.slowSqlMillis: 5000shbykj: checkCrc: false#mybatismybatis-plus: mapper-locations: classpath:/mapper/*.xml typeAliasesPackage: org.spring.springboot.entity global-config: #主鍵類型 0:'數據庫ID自增', 1:'用戶輸入ID',2:'全局唯一ID (數字類型唯一ID)', 3:'全局唯一ID UUID'; id-type: 3 #字段策略 0:'忽略判斷',1:'非 NULL 判斷'),2:'非空判斷' field-strategy: 2 #駝峰下劃線轉換 db-column-underline: true #刷新mapper 調試神器 refresh-mapper: true configuration: map-underscore-to-camel-case: true cache-enabled: false#logginglogging: config: classpath:log4j2-demo.xml整合swaggerUi

pom

<dependency> <groupId>io.springfox</groupId> <artifactId>springfox-swagger-ui</artifactId> <version>2.9.2</version> </dependency>   <dependency> <groupId>io.swagger</groupId> <artifactId>swagger-models</artifactId> <version>1.5.21</version> </dependency>  <dependency> <groupId>io.springfox</groupId> <artifactId>springfox-swagger2</artifactId> <version>2.9.2</version> <exclusions> <exclusion> <groupId>com.google.guava</groupId> <artifactId>guava</artifactId> </exclusion> </exclusions> </dependency>

使用

package com.shbykj.handle.web.wx;import com.baomidou.mybatisplus.core.metadata.IPage;import com.shbykj.handle.common.RetMsgData;import com.shbykj.handle.common.State;import com.shbykj.handle.common.model.sys.SysInstrument;import com.shbykj.handle.h.service.ISysInstrumentService;import io.swagger.annotations.Api;import io.swagger.annotations.ApiImplicitParam;import io.swagger.annotations.ApiImplicitParams;import io.swagger.annotations.ApiOperation;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.web.bind.annotation.GetMapping;import org.springframework.web.bind.annotation.RequestMapping;import org.springframework.web.bind.annotation.RequestParam;import org.springframework.web.bind.annotation.RestController;/** * 監測點接口 * * @author * @date 2021-01-15 16:49 */@RestController@RequestMapping({'/api/wxapoint'})@Api( tags = {'小程序監測點接口'})public class CSDevicesController extends BaseController { @Autowired private ISysInstrumentService sysInstrumentService; public CSDevicesController() { } @ApiOperation( value = '分頁查詢', notes = '分頁查詢站點信息' ) @ApiImplicitParams({@ApiImplicitParam( name = 'number', value = '設備編號', paramType = 'query', dataType = 'String' ), @ApiImplicitParam( name = 'page', value = '頁碼從1開始', required = false, dataType = 'long', paramType = 'query' ), @ApiImplicitParam( name = 'size', value = '頁數', required = false, dataType = 'long', paramType = 'query' )}) @GetMapping({'/pageByNumber'}) public RetMsgData<IPage<SysInstrument>> pageByNumber(@RequestParam(required = false) String number) { RetMsgData msg = new RetMsgData(); try { IPage<SysInstrument> page1 = this.getPage(); page1 = sysInstrumentService.pageByNumber(number, page1); msg.setData(page1); } catch (Exception var5) { msg.setState(State.RET_STATE_SYSTEM_ERROR); this.logger.error(var5.getMessage()); } return msg; }}

package com.shbykj.handle.common.model.sys;import com.baomidou.mybatisplus.annotation.IdType;import com.baomidou.mybatisplus.annotation.TableField;import com.baomidou.mybatisplus.annotation.TableId;import com.baomidou.mybatisplus.annotation.TableName;import io.swagger.annotations.ApiModel;import io.swagger.annotations.ApiModelProperty;import java.io.Serializable;import java.util.Date;@TableName('instrument')@ApiModel('儀器配置表字段信息')public class SysInstrument implements Serializable { private static final long serialVersionUID = 1L; @TableId( value = 'id', type = IdType.AUTO ) @ApiModelProperty( value = 'id', name = 'id', required = true ) private Long id; @TableField('name') @ApiModelProperty( value = '名稱儀器名稱', name = 'name' ) private String name; @TableField('number') @ApiModelProperty( value = '編號儀器編號(PN)', name = 'number' ) private String number; @TableField('manufacturer') @ApiModelProperty( value = '生產廠商生產廠商', name = 'manufacturer' ) private String manufacturer; @TableField('gmt_create') @ApiModelProperty( value = '創建時間', name = 'gmt_create' ) private Date gmtCreate; @TableField('gmt_modified') @ApiModelProperty( value = '更新時間', name = 'gmt_modified' ) private Date gmtModified; @TableField('is_deleted') @ApiModelProperty( value = '表示刪除，0 表示未刪除默認0', name = 'is_deleted' ) private Integer isDeleted; @TableField('device_type') @ApiModelProperty( value = '設備類型(PT)', name = 'device_type' ) private String deviceType; public SysInstrument() { } public Long getId() { return this.id; } public String getName() { return this.name; } public String getNumber() { return this.number; } public String getManufacturer() { return this.manufacturer; } public Date getGmtCreate() { return this.gmtCreate; } public Date getGmtModified() { return this.gmtModified; } public Integer getIsDeleted() { return this.isDeleted; } public String getDeviceType() { return this.deviceType; } public void setId(final Long id) { this.id = id; } public void setName(final String name) { this.name = name; } public void setNumber(final String number) { this.number = number; } public void setManufacturer(final String manufacturer) { this.manufacturer = manufacturer; } public void setGmtCreate(final Date gmtCreate) { this.gmtCreate = gmtCreate; } public void setGmtModified(final Date gmtModified) { this.gmtModified = gmtModified; } public void setIsDeleted(final Integer isDeleted) { this.isDeleted = isDeleted; } public void setDeviceType(final String deviceType) { this.deviceType = deviceType; } public String toString() { return 'SysInstrument(id=' + this.getId() + ', name=' + this.getName() + ', number=' + this.getNumber() + ', manufacturer=' + this.getManufacturer() + ', gmtCreate=' + this.getGmtCreate() + ', gmtModified=' + this.getGmtModified() + ', isDeleted=' + this.getIsDeleted() + ', deviceType=' + this.getDeviceType() + ')'; }}整合log4j

https://www.jb51.net/article/152599.htm

MQTT 物聯網系統基本架構

pom

<?xml version='1.0' encoding='UTF-8'?><project xmlns='http://maven.apache.org/POM/4.0.0' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xsi:schemaLocation='http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd'> <modelVersion>4.0.0</modelVersion> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>2.4.2</version> <relativePath/>  </parent> <groupId>com.shbykj</groupId> <artifactId>handle_mqtt</artifactId> <version>0.0.1-SNAPSHOT</version> <name>handle_mqtt</name> <description>Demo project for Spring Boot</description> <properties> <java.version>1.8</java.version> <skipTests>true</skipTests> </properties> <dependencies>  <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-integration</artifactId> </dependency> <dependency> <groupId>org.springframework.integration</groupId> <artifactId>spring-integration-stream</artifactId> </dependency> <dependency> <groupId>org.springframework.integration</groupId> <artifactId>spring-integration-mqtt</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> <exclusions> <exclusion> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-logging</artifactId> </exclusion> </exclusions> </dependency>    <dependency> <groupId>org.slf4j</groupId> <artifactId>slf4j-simple</artifactId> <version>1.7.25</version> <scope>compile</scope> </dependency>  <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-log4j2</artifactId> </dependency>  <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter</artifactId> <exclusions> <exclusion> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-logging</artifactId> </exclusion> </exclusions> </dependency>  <dependency> <groupId>io.springfox</groupId> <artifactId>springfox-swagger-ui</artifactId> <version>2.9.2</version> </dependency>   <dependency> <groupId>io.swagger</groupId> <artifactId>swagger-models</artifactId> <version>1.5.21</version> </dependency>  <dependency> <groupId>io.springfox</groupId> <artifactId>springfox-swagger2</artifactId> <version>2.9.2</version> <exclusions> <exclusion> <groupId>com.google.guava</groupId> <artifactId>guava</artifactId> </exclusion> </exclusions> </dependency>   <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-devtools</artifactId> <optional>true</optional> <scope>runtime</scope> </dependency>  <dependency> <groupId>com.google.code.gson</groupId> <artifactId>gson</artifactId> </dependency>  <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-data-redis</artifactId> </dependency>  <dependency> <groupId>org.apache.commons</groupId> <artifactId>commons-lang3</artifactId> <version>3.8.1</version> </dependency>   <dependency> <groupId>com.google.guava</groupId> <artifactId>guava</artifactId> <version>30.0-jre</version> </dependency>  <dependency> <groupId>cn.hutool</groupId> <artifactId>hutool-core</artifactId> <version>5.5.0</version> </dependency>  <dependency> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> <optional>true</optional> </dependency>  <dependency> <groupId>commons-collections</groupId> <artifactId>commons-collections</artifactId> <version>3.2</version> </dependency> <dependency> <groupId>com.baomidou</groupId> <artifactId>spring-wind</artifactId> <version>1.1.5</version> <exclusions> <exclusion> <groupId>com.baomidou</groupId> <artifactId>mybatis-plus</artifactId> </exclusion> </exclusions> </dependency> <dependency> <groupId>com.baomidou</groupId> <version>3.1.2</version> <artifactId>mybatis-plus-boot-starter</artifactId> </dependency> <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> <version>5.1.44</version> </dependency> <dependency> <groupId>com.alibaba</groupId> <artifactId>druid-spring-boot-starter</artifactId> <version>1.1.10</version> </dependency>  <dependency> <groupId>com.github.pagehelper</groupId> <artifactId>pagehelper-spring-boot-starter</artifactId> <version>1.2.12</version> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-test</artifactId> <scope>test</scope> </dependency> </dependencies> <build> <plugins> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> <executions> <execution> <goals> <goal>repackage</goal> </goals> </execution> </executions> </plugin> </plugins> </build></project>

yml

server: port: 8082iot: mqtt: clientId: ${random.value} defaultTopic: topic shbykjTopic: shbykj_topic url: tcp://127.0.0.1:1883 username: admin password: admin completionTimeout: 3000#微信小程序相關參數shbykjWeixinAppid: wxae343ca8948f97c4shbykjSecret: 9e168c92702efc06cb12fa22680f049a#springspring: devtools: restart: enabled: true main: allow-bean-definition-overriding: true # mysql DATABASE CONFIG datasource: druid: filters: stat,wall,log4j2 continueOnError: true type: com.alibaba.druid.pool.DruidDataSource url: jdbc:mysql://localhost:3306/mqttdb?useSSL=false&useUnicode=true&characterEncoding=utf-8&serverTimezone=UTC&allowPublicKeyRetrieval=true username: root password: 123456 driver-class-name: com.mysql.jdbc.Driver # see https://github.com/alibaba/druid initialSize: 15 minIdle: 10 maxActive: 200 maxWait: 60000 timeBetweenEvictionRunsMillis: 60000 validationQuery: SELECT 1 testWhileIdle: true testOnBorrow: false testOnReturn: false poolPreparedStatements: true keepAlive: true maxPoolPreparedStatementPerConnectionSize: 50 connectionProperties: druid.stat.mergeSql: true druid.stat.slowSqlMillis: 5000shbykj: checkCrc: false#mybatismybatis-plus: mapper-locations: classpath:/mapper/*.xml typeAliasesPackage: org.spring.springboot.entity global-config: #主鍵類型 0:'數據庫ID自增', 1:'用戶輸入ID',2:'全局唯一ID (數字類型唯一ID)', 3:'全局唯一ID UUID'; id-type: 3 #字段策略 0:'忽略判斷',1:'非 NULL 判斷'),2:'非空判斷' field-strategy: 2 #駝峰下劃線轉換 db-column-underline: true #刷新mapper 調試神器 refresh-mapper: true configuration: map-underscore-to-camel-case: true cache-enabled: false #log4j打印sql日志 log-impl: org.apache.ibatis.logging.stdout.StdOutImpl#logginglogging: config: classpath:log4j2-demo.xml

到此這篇關于springboot 實現mqtt物聯網的文章就介紹到這了,更多相關springboot 實現mqtt物聯網內容請搜索好吧啦網以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持好吧啦網！
