消息處理機制主要對象:Looper,Handler,Message(還有MessageQueue和Runnable)

Looper不斷從MessageQueue消息隊列中取出一個Message，然后傳給Handle，如此循環往復，如果隊列為空，那么它會進入休眠。

這些類的主要變量

Looper.java

static final ThreadLocal<Looper> sThreadLocal = new ThreadLocal<Looper>(); private static Looper sMainLooper; // guarded by Looper.class final MessageQueue mQueue; final Thread mThread;

Handler.java

final MessageQueue mQueue; final Looper mLooper; final Callback mCallback; final boolean mAsynchronous; IMessenger mMessenger;

Message.java

Handler target;每個消息只能對應一個handlerRunnable callback;回調接口

MessageQueue.java

Message mMessages;

Runnable是一個空接口類，沒有變量

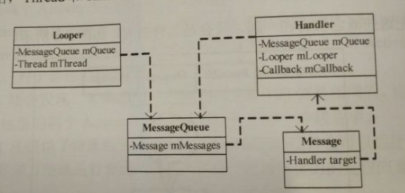

上一個書上的圖：

Handler和Thread沒有直接關系，但對應關系可以推理得到

每個Thread只對應一個Looper；

每個Looper只對應一個MessageQueue;

每個MessageQueue對應N個Message，每個Message只對應一個Handler

==》每個Thread對應N個Handler。

Handler是”真正處理事情“的地方，作用：處理消息，將Message壓入MessageQueue中

帶著一個問題看源碼：創建handler對象的線程（ui/主線程除外）為什么，必須先調用Looper.prepare() ？

public Handler() { this(null, false); }public Handler(Callback callback) { this(callback, false); }public Handler(Looper looper) { this(looper, null, false); } public Handler(Looper looper, Callback callback) { this(looper, callback, false); } public Handler(boolean async) { this(null, async); }public Handler(Callback callback, boolean async) { if (FIND_POTENTIAL_LEAKS) { final Class<? extends Handler> klass = getClass(); if ((klass.isAnonymousClass() || klass.isMemberClass() || klass.isLocalClass()) && (klass.getModifiers() & Modifier.STATIC) == 0) {Log.w(TAG, 'The following Handler class should be static or leaks might occur: ' + klass.getCanonicalName()); } } mLooper = Looper.myLooper(); if (mLooper == null) { throw new RuntimeException('Can’t create handler inside thread that has not called Looper.prepare()'); } mQueue = mLooper.mQueue; mCallback = callback; mAsynchronous = async; } public Handler(Looper looper, Callback callback, boolean async) { mLooper = looper; mQueue = looper.mQueue; mCallback = callback; mAsynchronous = async; }

初始化handler對象時(構造方法是Handler(),Handler(Callback callback))都間接調用Handler(Callback callback, boolean async)構造方法

主要代碼是Looper.myLooper();

static final ThreadLocal<Looper> sThreadLocal = new ThreadLocal<Looper>();//這是在Looper類中的定義public static Looper myLooper() { return sThreadLocal.get();//從當前線程中獲得looper對象 }public static void prepare() {prepare(true);}private static void prepare(boolean quitAllowed) {if (sThreadLocal.get() != null) {throw new RuntimeException('Only one Looper may be created per thread');}sThreadLocal.set(new Looper(quitAllowed));//為當前線程設置looper對象}

我們自己創建線程必須通過Looper.prepare()方法為當前線程設置looper對象才可以通過Looper.myLooper()方法返回looper對象，這樣在非UI線程創建handler對象時才不會報錯。'Can’t create handler inside thread that has not called Looper.prepare()'

ps:prepare(boolean quitAllowed)(這個不用我們關心，略過。。)

這個quitAlowed參數是定義消息隊列用了，看的源代碼是android4.4

Looper.javaprivate Looper(boolean quitAllowed) { mQueue = new MessageQueue(quitAllowed); mRun = true; mThread = Thread.currentThread(); }MessageQueue.java// True if the message queue can be quit. private final boolean mQuitAllowed;//true消息隊列可以被quit，false消息隊列不能被quit。

主線程/UI線程的MessageQueue不能被銷毀掉。看源碼（銷毀調用Looper.quit()）

public static void prepareMainLooper() { prepare(false); synchronized (Looper.class) { if (sMainLooper != null) {throw new IllegalStateException('The main Looper has already been prepared.'); } sMainLooper = myLooper(); } }

偏離太遠了

所以得出結論：創建handler對象的線程（ui/主線程除外），必須先調用Looper.prepare()

Handler作用1：處理消息

在Looper類中處理消息是通過msg.target.dispatchMessage(msg);target就是handler對象（Message類的內部變量Handler target）將消息轉發到處理消息的對應的handler對象上,然后這個target即handler對象會在處理消息前做一個檢查

public void dispatchMessage(Message msg) { if (msg.callback != null) {//如果msg有綁定callback回調接口Runaable不為空，則執行Runnable的run方法 handleCallback(msg); } else { if (mCallback != null) {//如果handler的內置接口類Callback不為空，則執行boolean handleMessage(Message msg)這個方法if (mCallback.handleMessage(msg)) {執行完成則return return;} } handleMessage(msg);//最后才執行handler本身的方法 } } private static void handleCallback(Message message) { message.callback.run(); }public interface Callback {//handler的內置接口類Callbackpublic boolean handleMessage(Message msg); }

Handler作用2：將Message壓入MessageQueue中

handler中提供的很多發送message的方法，除了sendMessageAtFrontOfQueue()方法（直接調用enqueueMessage(queue, msg, 0);）之外，其它的發送消息方法最終都會輾轉調用到sendMessageAtTime()方法

public boolean sendMessageAtTime(Message msg, long uptimeMillis) { MessageQueue queue = mQueue; if (queue == null) { RuntimeException e = new RuntimeException( this + ' sendMessageAtTime() called with no mQueue'); Log.w('Looper', e.getMessage(), e); return false; } return enqueueMessage(queue, msg, uptimeMillis); }

sendMessageAtTime()方法也是調用Handler中的enqueueMessage(queue, msg, uptimeMillis)方法

和sendMessageAtFrontOfQueue()方法兩者最后都會調用enqueueMessage(queue, msg, uptimeMillis)方法

區別是需要延遲uptimeMillis時間后才將Message壓入MessageQueue中

private boolean enqueueMessage(MessageQueue queue, Message msg, long uptimeMillis) { msg.target = this;//給msg的target賦值為handler自身然后加入MessageQueue中 if (mAsynchronous) { msg.setAsynchronous(true); } return queue.enqueueMessage(msg, uptimeMillis); }

最終所有的方法都是調用MessageQueue中的enqueueMessage(msg, uptimeMillis);方法，是不是感覺兩個方法差不多啊，注意參數！！

MessageQueue的使用是在Looper中

Handler的作用整理完畢（好像我現在已經可以把Handler源碼完整默寫下來了。哈哈^.^記憶力真不行）

Looper類

作用：與當前線程綁定，保證一個線程只會有一個Looper實例，同時一個Looper實例也只有一個MessageQueue。

對于Looper主要是prepare()和loop()兩個方法

prepare()將普通線程轉化為looper線程，

loop()方法，不斷從MessageQueue中去取消息，交給消息的target屬性的dispatchMessage去處理。

public static void loop() { final Looper me = myLooper(); if (me == null) { throw new RuntimeException('No Looper; Looper.prepare() wasn’t called on this thread.'); } final MessageQueue queue = me.mQueue; // Make sure the identity of this thread is that of the local process, // and keep track of what that identity token actually is. Binder.clearCallingIdentity(); final long ident = Binder.clearCallingIdentity(); for (;;) { Message msg = queue.next(); // might block if (msg == null) {// No message indicates that the message queue is quitting.return; } // This must be in a local variable, in case a UI event sets the logger Printer logging = me.mLogging; if (logging != null) {logging.println('>>>>> Dispatching to ' + msg.target + ' ' + msg.callback + ': ' + msg.what); } msg.target.dispatchMessage(msg); if (logging != null) {logging.println('<<<<< Finished to ' + msg.target + ' ' + msg.callback); } // Make sure that during the course of dispatching the // identity of the thread wasn’t corrupted. final long newIdent = Binder.clearCallingIdentity(); if (ident != newIdent) {Log.wtf(TAG, 'Thread identity changed from 0x' + Long.toHexString(ident) + ' to 0x' + Long.toHexString(newIdent) + ' while dispatching to ' + msg.target.getClass().getName() + ' ' + msg.callback + ' what=' + msg.what); } msg.recycle(); } }

27行就是上面提到了，handler進行消息處理的關鍵代碼了

看著上面的分析很復雜，總結下

1、首先Looper.prepare()為在當前線程中保存一個Looper實例（sThreadLocal.set()），然后該實例中保存一個MessageQueue對象；因?yàn)長ooper.prepare()在一個線程中只能調用一次，所以MessageQueue在一個線程中只會存在一個。

2、Looper.loop()會讓當前線程進入一個無限循環，不端從MessageQueue的實例中讀取消息，然后回調msg.target.dispatchMessage(msg)方法。

3、Handler的構造方法，會首先得到當前線程中保存的Looper實例，進而與Looper實例中的MessageQueue想關聯。

4、Handler的sendMessage方法，會給msg的target賦值為handler自身，然后加入MessageQueue中。

5、在構造Handler實例時，我們會重寫handleMessage方法，也就是msg.target.dispatchMessage(msg)最終調用的方法。

好了，總結完成，大家可能還會問，那么在Activity中，我們并沒有顯示的調用Looper.prepare()和Looper.loop()方法，為啥Handler可以成功創建呢，這是因?yàn)樵贏ctivity的啟動代碼中，已經在當前UI線程調用了Looper.prepare()和Looper.loop()方法。
