官方API:

https://amueller.github.io/word_cloud/generated/wordcloud.WordCloud.html

font_path : string #字體路徑，需要展現什么字體就把該字體路徑+后綴名寫上，如：font_path = ’黑體.ttf’ width : int (default=400) #輸出的畫布寬度，默認為400像素 height : int (default=200) #輸出的畫布高度，默認為200像素 prefer_horizontal : float (default=0.90) #詞語水平方向排版出現的頻率，默認 0.9 （所以詞語垂直方向排版出現頻率為 0.1 ）mask : nd-array or None (default=None) #如果參數為空，則使用二維遮罩繪制詞云。如果 mask 非空，設置的寬高值將被忽略，遮罩形狀被 mask 取代。除全白（#FFFFFF）的部分將不會繪制，其余部分會用于繪制詞云。如：bg_pic = imread(’讀取一張圖片.png’)，背景圖片的畫布一定要設置為白色（#FFFFFF），然后顯示的形狀為不是白色的其他顏色。可以用ps工具將自己要顯示的形狀復制到一個純白色的畫布上再保存，就ok了。scale : float (default=1) #按照比例進行放大畫布，如設置為1.5，則長和寬都是原來畫布的1.5倍 min_font_size : int (default=4) #顯示的最小的字體大小 font_step : int (default=1) #字體步長，如果步長大于1，會加快運算但是可能導致結果出現較大的誤差 max_words : number (default=200) #要顯示的詞的最大個數 stopwords : set of strings or None #設置需要屏蔽的詞，如果為空，則使用內置的STOPWORDS background_color : color value (default=”black”) #背景顏色，如background_color=’white’,背景顏色為白色 max_font_size : int or None (default=None) #顯示的最大的字體大小 mode : string (default=”RGB”) #當參數為“RGBA”并且background_color不為空時，背景為透明 relative_scaling : float (default=.5) #詞頻和字體大小的關聯性 color_func : callable, default=None #生成新顏色的函數，如果為空，則使用 self.color_func regexp : string or None (optional) #使用正則表達式分隔輸入的文本 collocations : bool, default=True #是否包括兩個詞的搭配 colormap : string or matplotlib colormap, default=”viridis” #給每個單詞隨機分配顏色，若指定color_func，則忽略該方法 random_state : int or None #為每個單詞返回一個PIL顏色 fit_words(frequencies) #根據詞頻生成詞云generate(text) #根據文本生成詞云generate_from_frequencies(frequencies[, ...]) #根據詞頻生成詞云generate_from_text(text) #根據文本生成詞云process_text(text) #將長文本分詞并去除屏蔽詞（此處指英語，中文分詞還是需要自己用別的庫先行實現，使用上面的 fit_words(frequencies) ）recolor([random_state, color_func, colormap]) #對現有輸出重新著色。重新上色會比重新生成整個詞云快很多to_array() #轉化為 numpy arrayto_file(filename) #輸出到文件

補充：生成詞云之python中WordCloud包的用法

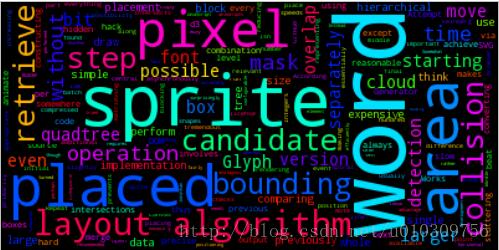

效果圖：

這是python中使用wordcloud包生成的詞云圖。

class wordcloud.WordCloud(font_path=None, width=400, height=200, margin=2, ranks_only=None, prefer_horizontal=0.9,mask=None, scale=1, color_func=None, max_words=200, min_font_size=4, stopwords=None, random_state=None,background_color=’black’, max_font_size=None, font_step=1, mode=’RGB’, relative_scaling=0.5, regexp=None, collocations=True,colormap=None, normalize_plurals=True)

這是wordcloud的所有參數，下面具體介紹一下各個參數：

font_path : string //字體路徑，需要展現什么字體就把該字體路徑+后綴名寫上，如：font_path = ’黑體.ttf’width : int (default=400) //輸出的畫布寬度，默認為400像素height : int (default=200) //輸出的畫布高度，默認為200像素prefer_horizontal : float (default=0.90) //詞語水平方向排版出現的頻率，默認 0.9 （所以詞語垂直方向排版出現頻率為 0.1 ）mask : nd-array or None (default=None) //如果參數為空，則使用二維遮罩繪制詞云。如果 mask 非空，設置的寬高值將被忽略，遮罩形狀被 mask 取代。除全白（#FFFFFF）的部分將不會繪制，其余部分會用于繪制詞云。如：bg_pic = imread(’讀取一張圖片.png’)，背景圖片的畫布一定要設置為白色（#FFFFFF），然后顯示的形狀為不是白色的其他顏色。可以用ps工具將自己要顯示的形狀復制到一個純白色的畫布上再保存，就ok了。scale : float (default=1) //按照比例進行放大畫布，如設置為1.5，則長和寬都是原來畫布的1.5倍。min_font_size : int (default=4) //顯示的最小的字體大小font_step : int (default=1) //字體步長，如果步長大于1，會加快運算但是可能導致結果出現較大的誤差。max_words : number (default=200) //要顯示的詞的最大個數stopwords : set of strings or None //設置需要屏蔽的詞，如果為空，則使用內置的STOPWORDSbackground_color : color value (default=”black”) //背景顏色，如background_color=’white’,背景顏色為白色。max_font_size : int or None (default=None) //顯示的最大的字體大小mode : string (default=”RGB”) //當參數為“RGBA”并且background_color不為空時，背景為透明。relative_scaling : float (default=.5) //詞頻和字體大小的關聯性color_func : callable, default=None //生成新顏色的函數，如果為空，則使用 self.color_funcregexp : string or None (optional) //使用正則表達式分隔輸入的文本collocations : bool, default=True //是否包括兩個詞的搭配colormap : string or matplotlib colormap, default=”viridis” //給每個單詞隨機分配顏色，若指定color_func，則忽略該方法。fit_words(frequencies) //根據詞頻生成詞云generate(text) //根據文本生成詞云generate_from_frequencies(frequencies[, ...]) //根據詞頻生成詞云generate_from_text(text) //根據文本生成詞云process_text(text) //將長文本分詞并去除屏蔽詞（此處指英語，中文分詞還是需要自己用別的庫先行實現，使用上面的 fit_words(frequencies) ）recolor([random_state, color_func, colormap]) //對現有輸出重新著色。重新上色會比重新生成整個詞云快很多。to_array() //轉化為 numpy arrayto_file(filename) //輸出到文件例子：

想要生成的詞云的形狀：

圖中黑色部分就是詞云的將要顯示的部分，白色部分不顯示任何詞。

下面是一個文本文檔：

How the Word Cloud Generator Works

The layout algorithm for positioning words without overlap is available on GitHub under an open source license as d3-cloud. Note that this is the only the layout algorithm and any code for converting text into words and rendering the final output requires additional development.

As word placement can be quite slow for more than a few hundred words, the layout algorithm can be run asynchronously, with a configurable time step size. This makes it possible to animate words as they are placed without stuttering. It is recommended to always use a time step even without animations as it prevents the browser’s event loop from blocking while placing the words.

The layout algorithm itself is incredibly simple. For each word, starting with the most “important”:

Attempt to place the word at some starting point: usually near the middle, or somewhere on a central horizontal line. If the word intersects with any previously placed words, move it one step along an increasing spiral. Repeat until no intersections are found. The hard part is making it perform efficiently! According to Jonathan Feinberg, Wordle uses a combination of hierarchical bounding boxes and quadtrees to achieve reasonable speeds.

Glyphs in JavaScript

There isn’t a way to retrieve precise glyph shapes via the DOM, except perhaps for SVG fonts. Instead, we draw each word to a hidden canvas element, and retrieve the pixel data.

Retrieving the pixel data separately for each word is expensive, so we draw as many words as possible and then retrieve their pixels in a batch operation.

Sprites and Masks

My initial implementation performed collision detection using sprite masks. Once a word is placed, it doesn’t move, so we can copy it to the appropriate position in a larger sprite representing the whole placement area.

The advantage of this is that collision detection only involves comparing a candidate sprite with the relevant area of this larger sprite, rather than comparing with each previous word separately.

Somewhat surprisingly, a simple low-level hack made a tremendous difference: when constructing the sprite I compressed blocks of 32 1-bit pixels into 32-bit integers, thus reducing the number of checks (and memory) by 32 times.

In fact, this turned out to beat my hierarchical bounding box with quadtree implementation on everything I tried it on (even very large areas and font sizes). I think this is primarily because the sprite version only needs to perform a single collision test per candidate area, whereas the bounding box version has to compare with every other previously placed word that overlaps slightly with the candidate area.

Another possibility would be to merge a word’s tree with a single large tree once it is placed. I think this operation would be fairly expensive though compared with the analagous sprite mask operation, which is essentially ORing a whole block.

從這個文本中生成一個詞云，代碼如下：

#!/usr/bin/python# -*- coding: utf-8 -*-#coding=utf-8#導入wordcloud模塊和matplotlib模塊from wordcloud import WordCloudimport matplotlib.pyplot as pltfrom scipy.misc import imread#讀取一個txt文件text = open(’test.txt’,’r’).read()#讀入背景圖片bg_pic = imread(’3.png’)#生成詞云wordcloud = WordCloud(mask=bg_pic,background_color=’white’,scale=1.5).generate(text)image_colors = ImageColorGenerator(bg_pic)#顯示詞云圖片plt.imshow(wordcloud)plt.axis(’off’)plt.show()#保存圖片wordcloud.to_file(’test.jpg’)

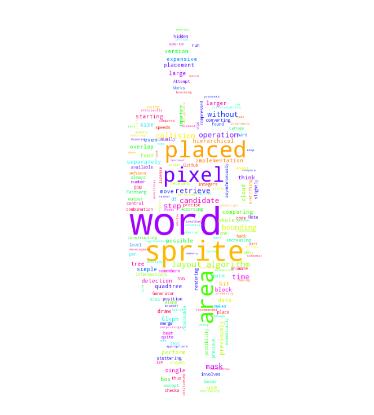

運行結果：

以上為個人經驗，希望能給大家一個參考，也希望大家多多支持好吧啦網。如有錯誤或未考慮完全的地方，望不吝賜教。
